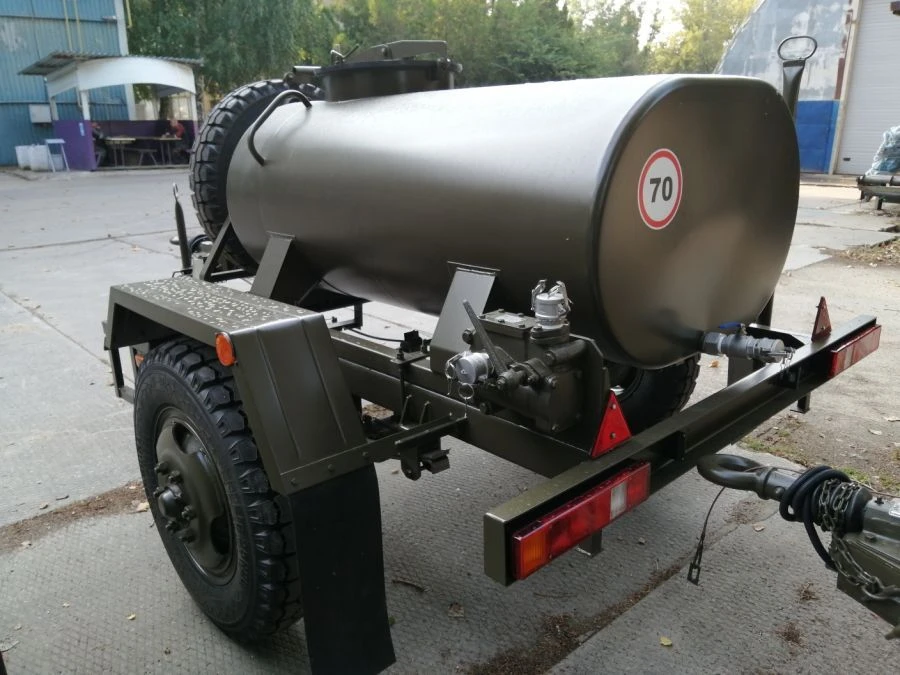

Trailed cistern CV-1,2

Trailer of category O2, type 9180, commercial name Tipper trailed CV-1,2. For transport and short-term storage of water or food liquids. Not intended for the transport of dangerous goods. Number of axles/wheels 1/2, Tank capacity 1200l, Overall dimensions of the trailed cistern: - length from 3810 to 4100mm, - width from 2000 to 2500mm, - height from 1650 to 2000mm. Vehicle kerb weight from 850 to 1100kg. Technically permissible maximum mass of the vehicle is 2300kg. Suspension Dependent, spring suspension. Braking systems (working) Inertial type with mechanical drive on all wheels / pneumatic, two-wire. Braking mechanisms of all wheels are of drum type. Braking systems (spare):Safety cable acting on the drive of parking brake system.Tyres 8.25R20. Number of tank sections-1, Wheel track from 1600 to 2060 mm, Inner diameter of the coupling loop of the drawbar hitch from 75 to 150 mm
