Flow meter - ultrasonic liquid counter OPTISONIC series model 3400

Flow meters - ultrasonic liquid meters OPTISONIC series model 3400 (hereinafter referred to as flow meters) are designed to measure in the forward and reverse directions of flow, volume, including for commercial accounting, liquids and liquefied gases in pipelines with a nominal diameter from DN25 to DN3000. Flowmeters are used in chemical, petrochemical, oil and gas industry, nuclear industry and other industrial sectors.
Areas of application:
- electrically conductive and non-electrically conductive liquids;
- cryogenic and high-temperature liquids.
The flowmeters have the following versions: compact (C), separate (F), explosion-proof, explosion-proof with intrinsically safe output circuits.

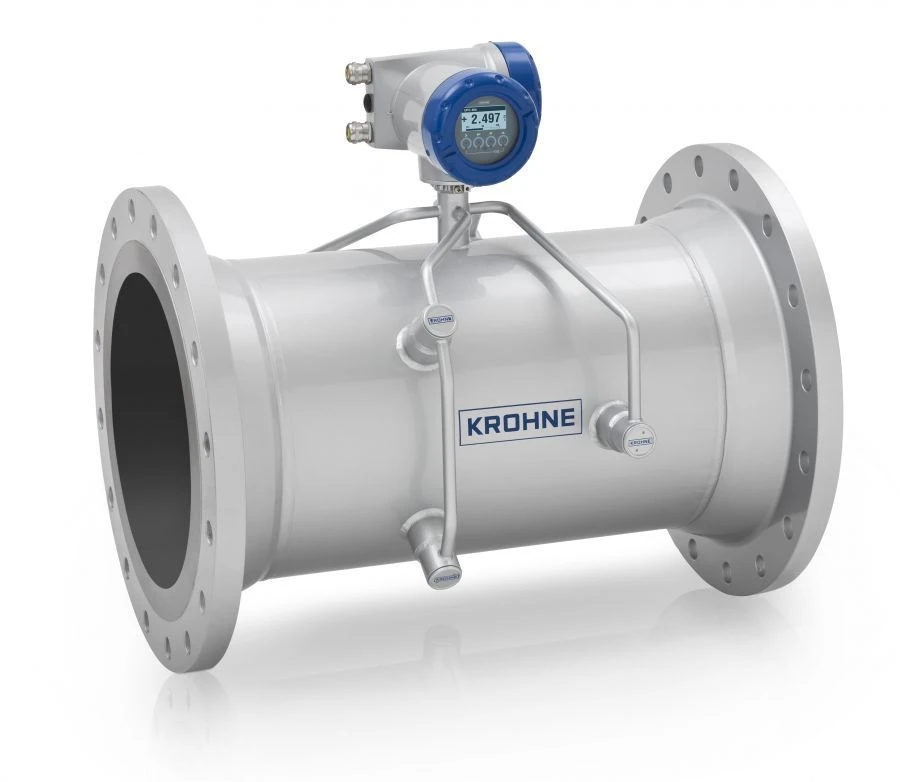

The flowmeters consist of primary flow transmitter (PFD) and signal converter (SC) UFC 400. The primary flow transmitter is a cylindrical measuring section (measuring pipe), to which connection flanges are welded on both sides (...).
