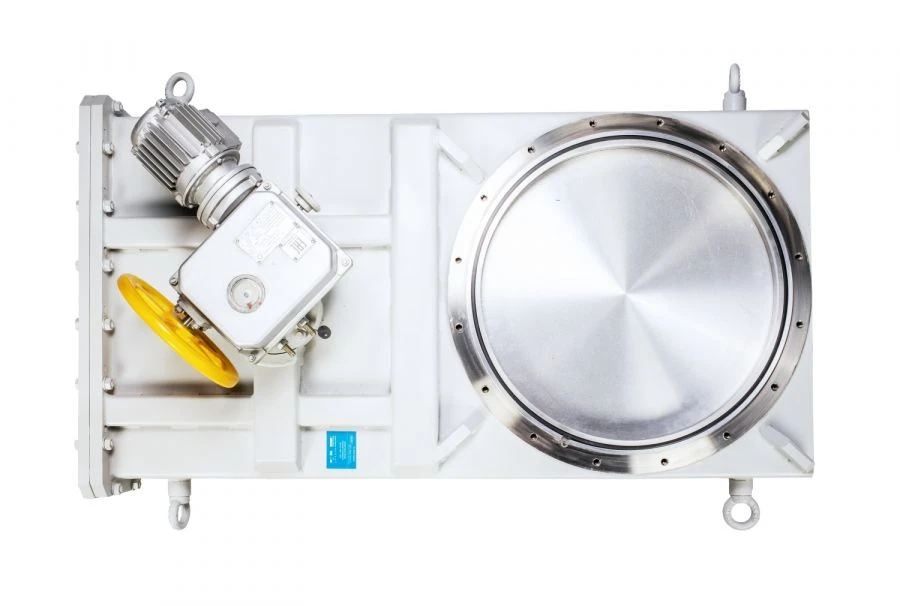

Flat electrically actuated vacuum gate valve ??????-500

Pipeline Control Valves

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Flat electric actuated vacuum gate valve ZVPLE-630

Description

Flat electric actuated vacuum gate valve ZVVPLE-500 with a nominal bore of 500 mm is designed for shutting off vacuum systems in the pressure range from 1,1x10 -6 to 1,07 x 10 5 Pa. It is manufactured in climatic versions according to GOST 15150-69, UHL4 and O4. Working environment - air and non-aggressive gases. Flat electric actuated vacuum gate valve ZVVPLE-500 is not intended for use in fire-explosive production facilities.

Specifications

Conductivity (theoretical) in molecular mode, m3/s, not less than 100

Tightness norm, m3-Pa/c, not more than 1,0x10 -4 m3-Pa/c

Time of opening (closing) of the gate from the electric actuator, s, not more than Flat grinder, Specialised grinder

Power consumption at the moment of opening (closing), W (short-term twofold increase of power consumption is allowed), W (short- 100 W

Pressure drop in the closed position on either side of the flap/shutter, Pa, not more than 1,07?10 5

Permissible pressure drop at opening of the damper/shutter, Pa, not more than 1,33?10 3

Overall dimensions, mm, not more 1377x457x688 mm

Weight, kg, not more 200 kg
