Flame retardant, non-combustible cable with low smoke and gas emission up to 1 kV VVGng(A)-FRLS

Stationary Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Fire-resistant cable, not spreading combustion, with low smoke and gas emission, designed for transmission and distribution of electrical energy and electrical signals in stationary electrical installations at nominal AC voltage of 380, 500, 660 and 1000 V with frequency up to 100 Hz or at DC voltage of 500, 750, 1000 and 1500 V respectively.

Specifications

The cables are designed for Cable lines for power supply of safety systems equipment, wiring of fire safety systems circuits (fire alarm circuits, power supply of fire extinguishing pumps, lighting of emergency exits and escape routes, smoke extraction and supply ventilation systems)

Permissible heating temperatures of cable cores long-term permissible - not more than 70°?; in overload mode - not more than 90°?; short-circuit limit - 160°?; under the condition of short-circuit non-fire - not more than 350°?. °C

Installation conditions Cables may be laid without limitation of level difference along the route of laying, including vertical sections. Permissible tension forces of cables during laying shall not exceed 50 N/mm2. The permissible bending radius of multicore cables during laying

Conditions of safe operation Cables are designed for operation at ambient temperature from -50°? to +50°? and relative humidity up to 98% at temperature up to 35°?.

Cable storage period in closed rooms Not more than 10 yrs.

Period of cable storage under a shelter no more than 5 years

Cable storage period in open areas no more than 2 years

Conditions of transportation and storage of cables in terms of exposure to climatic factors of external environment must comply with group OZh2 according to GOST 15150-69

Transportation and storage of cables shall comply with the following requirements GOST 18690-2012 and GOST 31996-2012

Areas of application For group laying of cable lines in the air if there is no danger of mechanical damage during operation; in dry or damp rooms (tunnels), channels, cable half floors; in mines, collectors, industrial premises, partially behind

Accommodation category 1-5 (GOST 15150-69)

Climatic version UHL and T

Nominal cross-section 1.5 to 400 mm2

Number of conductive cores 1 to 5 pc

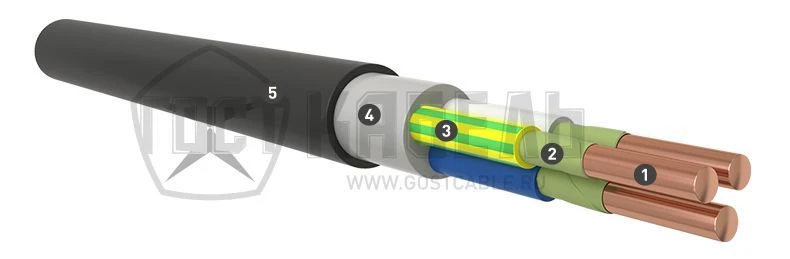

Structural design Power cables with copper conductive cores, with thermal barrier made of mica-containing tapes, with insulation and sheathing made of polyvinylchloride plasticate of reduced fire hazard, single-wire or multi-wire, round or sector shape.

Purpose Intended for transmission and distribution of electric energy and electric signals in stationary electrical installations at rated alternating voltage of 380, 500, 660 and 1000 V, frequency up to 100 Hz or at direct voltage of 500, 750,1

Main features Cables flame retardant, non-combustible, low smoke and gas emissions

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
