Available for Import
Flexible power cables for voltage up to 220 V KOG1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Seal especially flexible welding cables KOG1, KOG1-XL for 220 V are designed for connection at arc welding of electrode holders, automatic and semi-automatic welding units, as well as for manual electric arc welding with a source for nominal alternating voltage 220 V of frequency 50 Hz or constant voltage 700 V.
Cables are designed for operation outdoors, under a canopy, in closed rooms, as well as in rooms with high humidity, in which the prolonged presence or frequent condensation of moisture on the walls and ceiling is possible. Cables are resistant to solar radiation. KOGN1 cable does not spread combustion.
Cables are designed for operation outdoors, under a canopy, in closed rooms, as well as in rooms with high humidity, in which the prolonged presence or frequent condensation of moisture on the walls and ceiling is possible. Cables are resistant to solar radiation. KOGN1 cable does not spread combustion.
Specifications

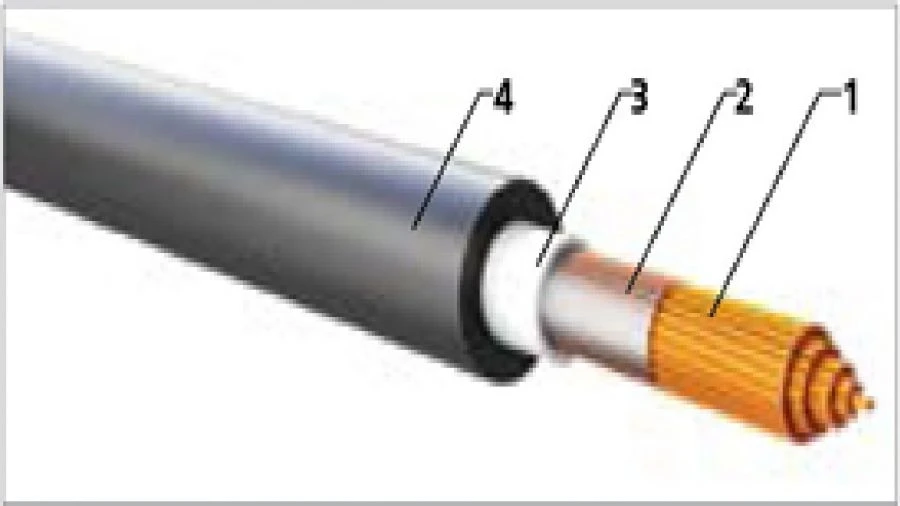

Core design
Conducting core - copper multi-conductor, round shape, corresponds to class 6 according to GOST 22483. 2.Separating layer - of synthetic film.
Filling between insulated conductors
absent
Type of sheathing and protective cover
Separating layer - of synthetic film.
Number of conductive cores
1 pc
Nominal cross sections of conductor cores
16...150 mm2
Nominal voltage
0.22 kV
Conducting core material
Copper
Mark
COG1
Core material
Copper
Core diameter
2...18 mm
Insulation material
Insulation made of RTI-1 type insulating rubber on the basis of natural and butadiene rubber.
Sheath material
Sheath - of rubber type RSH-1 based on synthetic rubbers
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
