Available for Import

Flame retardant, low smoke and gas emission cable for voltage up to 1kV AVBSHVng(A)-LS

Aluminium Power Cables 1kV

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Cable not spreading combustion, with low smoke and gas emission is designed for transmission and distribution of electrical energy and electrical signals in stationary installations at nominal alternating voltage of 660, 1000 V or respectively at constant voltage of 1000 and 1500 V.

Specifications

Cable storage period in closed rooms no more than 10 years

Period of cable storage under a shelter no more than 5 years

Cable storage period in open areas no more than 2 years

Conditions of transportation and storage of cables in terms of exposure to climatic factors of external environment must comply with group OZh2 according to GOST 15150-69

Transportation and storage of cables shall comply with the following requirements GOST18690-2012 and GOST 31996-2012

Accommodation category 1-5 (GOST 15150-69)

Climatic version UHL and T

Nominal cross-section 1.5 to 400 mm2

Number of conductive cores 1 to 5 pc

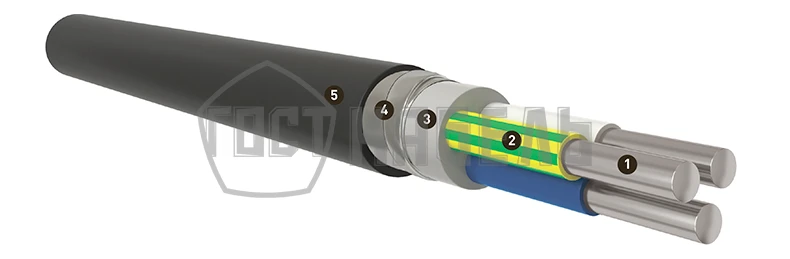

Structural design Power cables with copper or aluminum conductive cores, single-wire or multi-wire, round or sector shape

Purpose Designed for power transmission and distribution in stationary electrical installations with rated alternating voltage of 0.66 kV or 1.0 kV, rated frequency 50 Hz

Main features Cables with insulation and outer sheath made of PVC plasticate, non-burning category A with low smoke and gas emission

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Share your requirements for a quick response!

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
