Available for Import

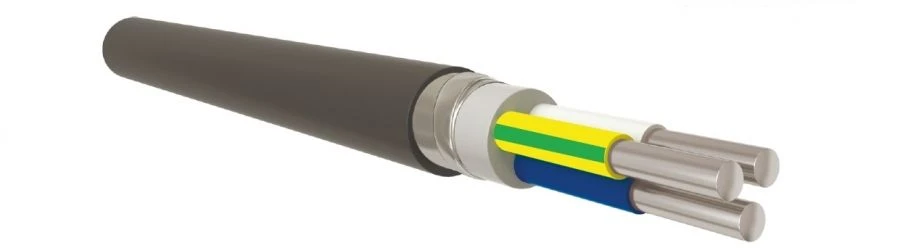

Plastic insulated power cables for voltage up to 1 kV AVBSHVng(A)
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Technical Specifications
| Mark | AVBSHVng(A) |
|---|---|
| Core material | Aluminum |
| Insulation material | Polyvinyl chloride plasticate with colour marking |
| Sheath material | Polyvinyl chloride plasticate of reduced fire hazard |
| Calculated weight | 1 kg |
| Number of cores | 1,2,3,4,5 pc |
| Core cross section | 16,25,35,50,70,95,120,150,185,240 mm2 |
| Nominal cross section of phase conductors | 16,25,35,50,70,95,120,150,185,240 mm2 |
| Number of phase conductors | 1,2,3,4,5 pc |
| Laying and installation of cables without preheating is carried out at temperature | at least - 15 °C |
| Long-term permissible core heating temperature during operation | No more than 70 °C |
| Short circuit duration | No more than 5 |
| Permissible heating temperature of cable cores in overload mode | Not more than 90 °C |
| Limit temperature of core heating under conditions of short circuit non-flammability | no more than 350 °C |
| Test alternating voltage with frequency 50 Hz at 0.66 kV | 3 kV |
| Test AC voltage of 50 Hz frequency at 1 kV | 3,5 kV |
| Maximum AC voltage of frequency 50Hz at 0.66 kV | 0,72 kV |
| Maximum AC voltage of frequency 50Hz at 1 kV | 1,2 kV |
| Armor | of two galvanized steel bands |
| Protective hose | polyvinyl chloride plasticate with reduced fire hazard |
| Filler material | Polyvinyl chloride plasticate of reduced fire hazard |
| Insulation material of phase conductors | Polyvinyl chloride plasticate with colour marking |
| Climatized version | -50...50 °C |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
