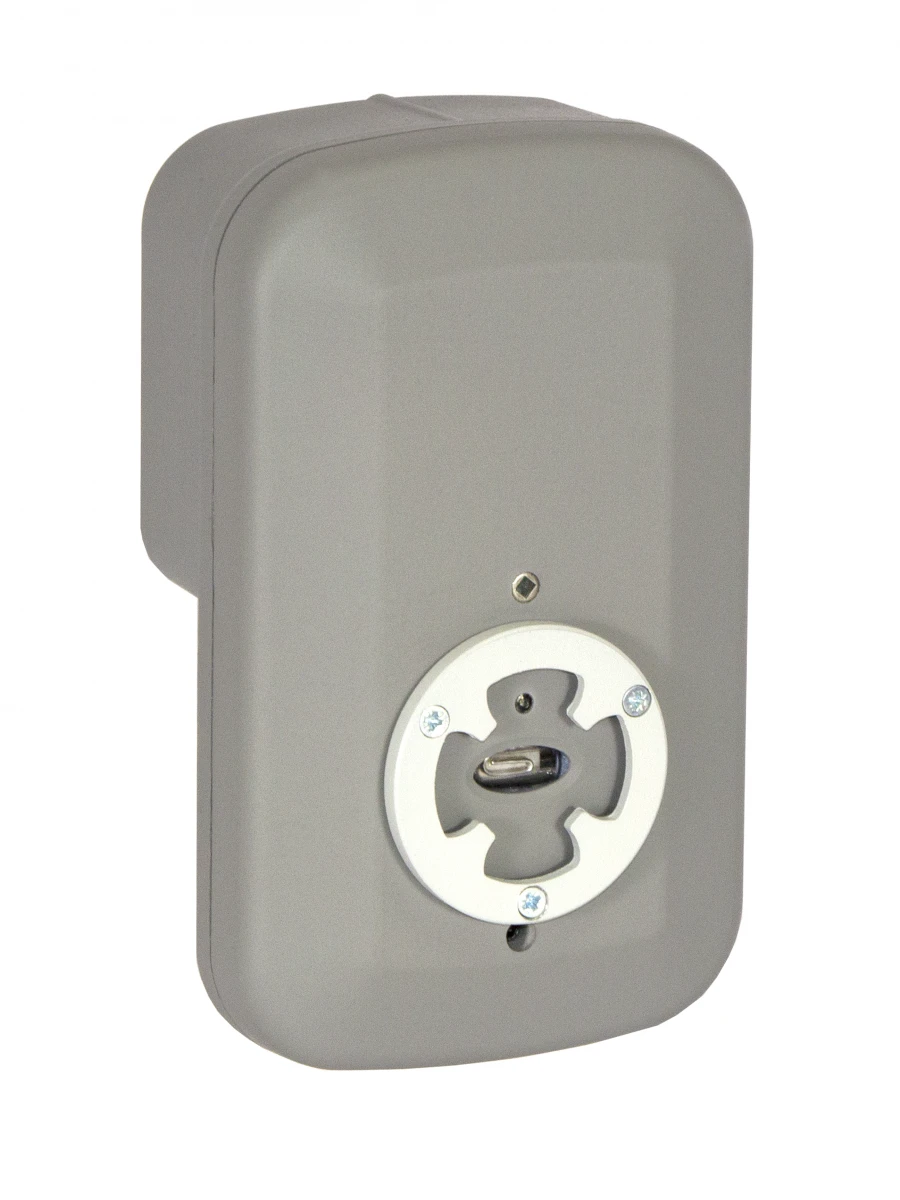

Flame Detector Spectron-601-Exm-C for Early Fire Detection

Fire Alarm Detectors

Manufacturer: SPEKTRON LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The Spectron-601-C-Exm is a fire flame detector of infrared/ultraviolet (IR/UV) ranges. The detector housing is made of high-strength ABS plastic and has a degree of protection IP68 from the external environment. It is made in accordance with the requirements for explosion-protected equipment with the type of explosion protection "sealed with compound m", having the explosion protection level "explosion-proof". It can be used in hazardous areas of classes "1", "2", "21" and "22" of closed premises and outdoor installations.

Specifications

Weight

200 year

Overall dimensions

84x158x73 mm

Temperature range

–55 ÷ +75 °C

Degree of protection of the shell, IP

Operating temperature range

75 °C

Operating temperature

(55);+75 °C

Designation

IR/UV MULTI-BAND FLAME DETECTOR IP329/330

Assignment

Recommended for use in fire alarm systems and fire extinguishing systems in closed facilities and open installations

Explosion protection marking

1Ex mb IIC T6 Gb X / Ex mb IIIC T85ºC Db X

Housing material

ABS plastic

Power supply voltage

9...26 V

Sensitivity levels

Grade 1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
