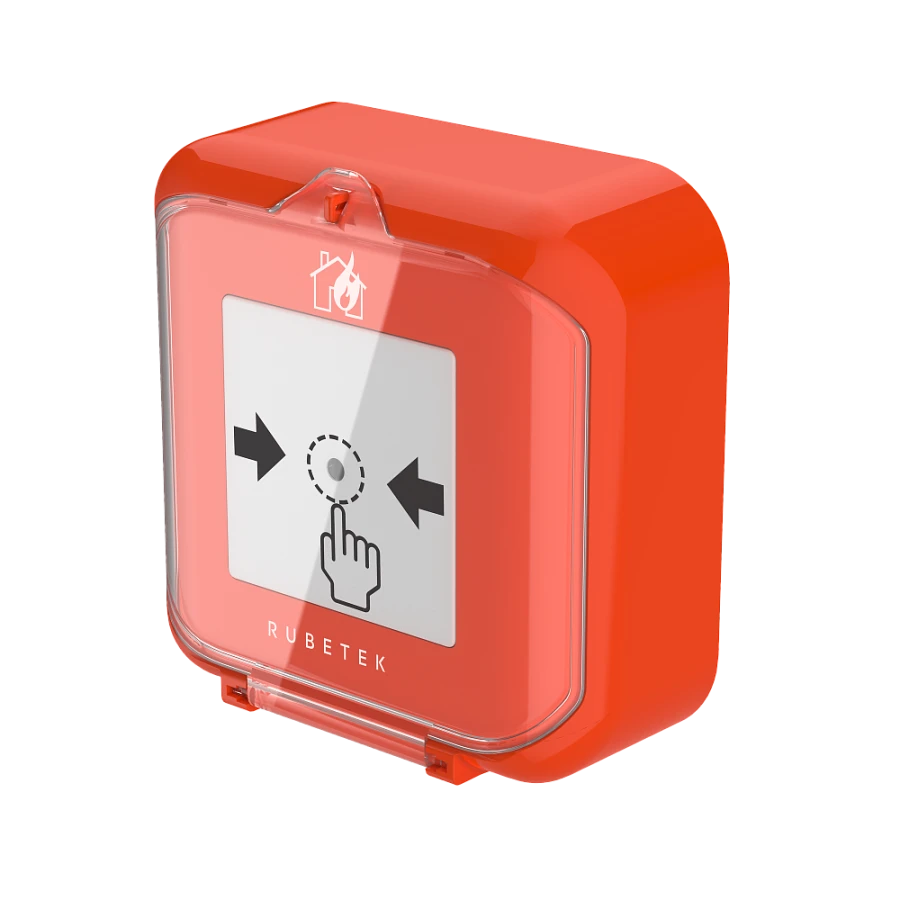

Manual Addressable Fire Alarm Detector IP 513-102 "RUBETEK" for Fire Safety

Fire Alarm Detectors

Manufacturer: RUBETEK RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Fire detector manual addressable radio channel IP 513-02 "RUBETEK"

Description

The manual addressable fire detector IP 513-102 "RUBETEK" (hereinafter - the detector) is designed for manual activation of the alarm signal in fire alarm and fire extinguishing systems. The detector operates under control of the control panel as part of the automatic fire alarm system "RUBETEK". The detector is installed indoors in places protected from atmospheric precipitation. The detector design does not provide for its use in conditions of aggressive media and dust, as well as in explosion and fire hazardous premises. The detector is designed for continuous round-the-clock operation and refers to restorable, periodically serviced products.

Specifications

Communication interface

PLS.

Number of address slots occupied

1 pcs

Power supply voltage

On pls.

Consumption current in standby mode max.

0.00016 A

Consumption current in the "Fire" mode not more than

0.0002 A

Operation at button pressing force, not less than

Availability of built-in isolator

Armoured glass

Number of devices connected to one PLC, max.

SBVVBG pcs

Operating temperature range

-25...55 °C

Relative humidity at + 40 deg. ?

0...93 %

Degree of enclosure protection

IP20

Dimensions (L x W x H), mm

85x85x40

Weight, not more

95 year

Tamper switch

Got it

Average service life

10 year

Average MTBF

60000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
