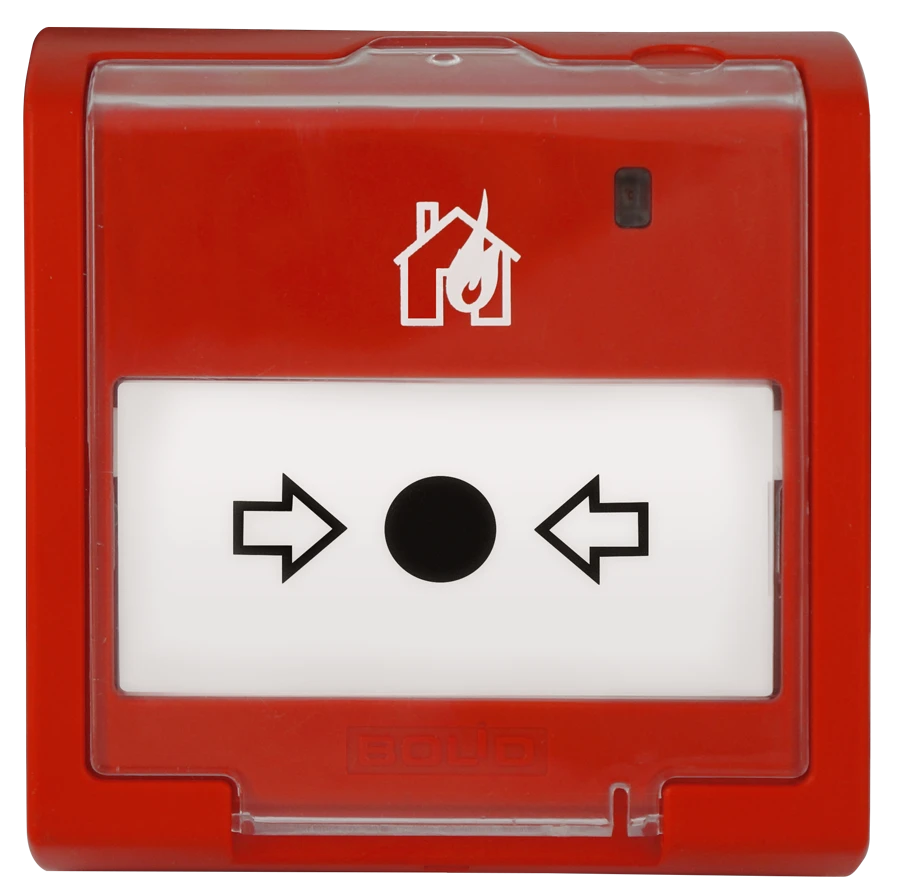

Fire detector manual addressable "IPR 513-3PAM" ????.425211.005

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Manual electric contact fire detector "IPR 513-3M" ????.425211.006 Radio-channel manual fire detector "S2000R-IPR" ATSDR.425211.011

Description

Applied in fire alarm systems and designed for manual formation of fire alarm signal. It is designed to work with a block receiving and controlling security and fire "Signal-10" as part of an integrated security system "Orion". The functions of the detector: monitoring the state of the key, the transfer of notifications to the "Signal-10", monitoring the state of the case (open or closed), storage in non-volatile memory address exchange with "Signal-10", indication of operating modes on the built-in light indicator.

Specifications

Power supply voltage (alarm loop) 9 to 30 V

Consumption current Not more than 400 µA

Number of detectors to be connected in an alarm loop Up to 10 pcs

Maximum active resistance of alarm loop wires Not more than 100 ohms

Minimum insulation resistance between the wires of the alarm loop at least 50 kOhm

Protection degree of the shell according to GOST 14254-2015 IP40

Operating temperature range -30 to +55 °C

Overall dimensions of the device max. 95x91x34 mm

Instrument weight max. 0.15 kg

Average lifetime of the device 10 a
