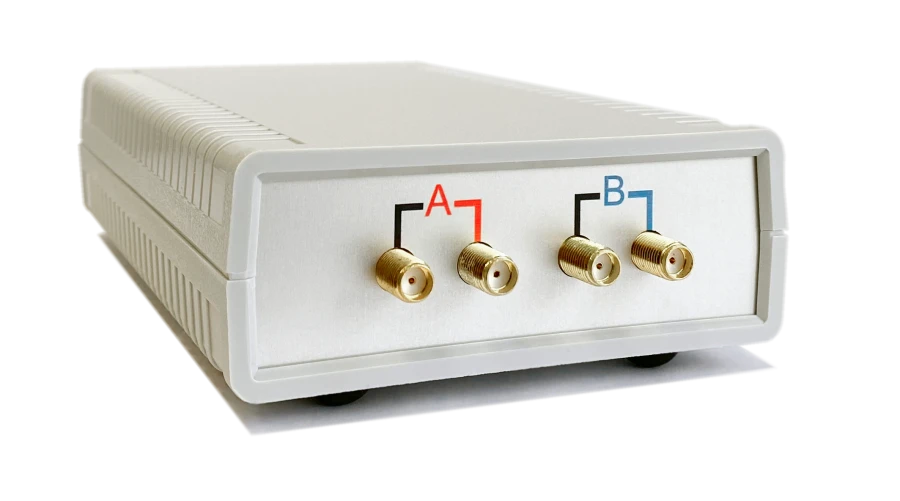

EyePoint u22 signal analyser

Signal and Spectrum Analysers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Two-channel localiser of faulty electronic components on printed circuit boards by the method of analogue signature analysis (ASA) with frequency of testing signal up to 100 kHz. Compact desktop device with the possibility of software control, complete with a set of probes, USB-flash-drive with a set of software, USB cable for connection to a PC.

Specifications

Current range 25 - 25000 µA

Weight 0.4 kg

Dimensions 175x90x40 mm

Software Functions Signature match threshold adjustment, Test Plan mode, program control option

Power supply voltage (from USB) 5 V

L sensitivity 1 - 10,000 µGN

C sensitivity 0.00005 - 6,800 µF

R sensitivity 1...10000000 ohm

Trial signal frequency 100000

Test signal voltage B1/B8 2100/900 MHz V

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
