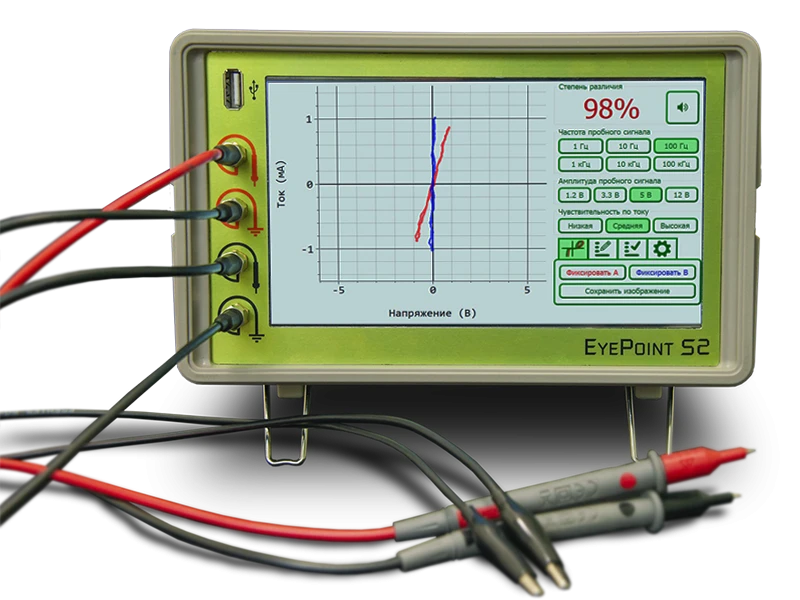

EyePoint S2 signal analyser
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Autonomous (does not require a computer) two-channel desktop localiser of faulty electronic components on printed circuit boards by analogue signature analysis (ASA) with a test signal frequency of up to 100 kHz. The system features a large, user-friendly touch screen. An optional foot pedal simplifies system operation. The device has a test plan mode, which allows you to save a reference board in advance, and then work with the same faulty board without having a reference at hand.
Specifications
Current range
25 - 25000 µA
External pedal for additional functionality
Armoured glass
Color touch screen display diagonal
7
Power supply
220 V
Weight
2.2 kg
Dimensions
205x204x120 mm
Software Functions
Signature match threshold adjustment, test plan mode, software control option, data export to external USB stick
L sensitivity
1 - 10,000 µGN
C sensitivity
0.00005 - 6,800 µF
R sensitivity
1...10000000 ohm
Trial signal frequency
100000
Test signal voltage
B1/B8 2100/900 MHz V
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
