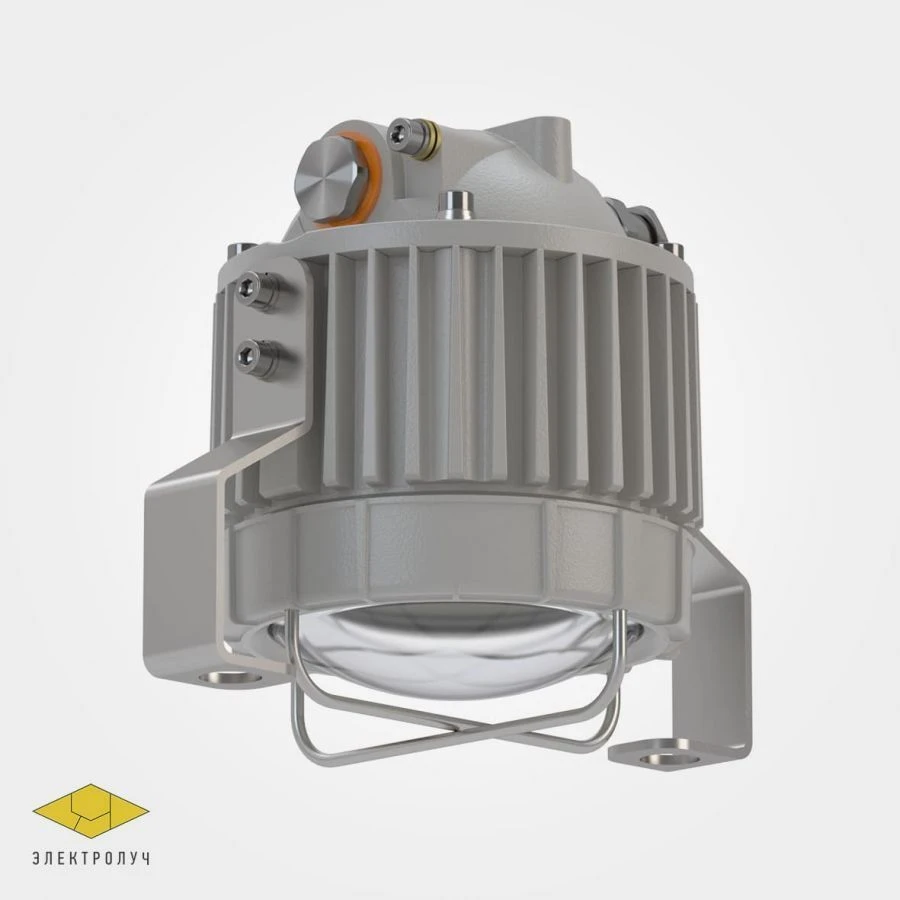

Explosion-proof LED luminaire V3G-200AMS-SD-15-40-DN50/DN100

Advanced LED Lighting

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The luminaires are designed for outdoor and indoor lighting of industrial, production facilities, open areas and other areas where the presence of explosive atmospheres is possible. The power of the product is 15-40 W. The luminaires are designed for operation in networks with nominal voltage of alternating current - 230, 127, 36 VAC; direct current - 12 VDC. Mounting method: mounting on a flange, 1-2 cable glands. The luminaire has several types of diffusers: polycarbonate, borosilicate glass, borosilicate glass with a protective grid. The luminaires can be operated in the temperature range from - 60°? to +55°?. Climatic execution and placement category according to GOST15150: U1, UHL1, OM1. Degree of protection IP: 66, 67, 68.

Specifications

Type of product according to PP RF 616 Lighting fixtures and lighting fittings other than those included in other groupings

Operating temperature conditions -60...55 °C

Input voltage B1/B8 2100/900 MHz V

Gross weight 3.3...4.1 kg

Net weight 3...3.8 kg

Height 170...190 mm

Width 160...220 mm

Length 150 mm

Degree of protection (IP) IP66; IP67; IP68

Climatic version U1; UHL1; OM1

Housing material Aluminum alloy with magnesium content less than 7.5 %

Correlated color temperature 3000 K

Pulsation factor 1 %

Luminous flux 2000...5100 lm

Protection class against electric current Grade I

Type of supply current AC; DC

Power consumption 15...40 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
