Explosion-proof junction box KR-B64

Electrical Circuit Protection

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

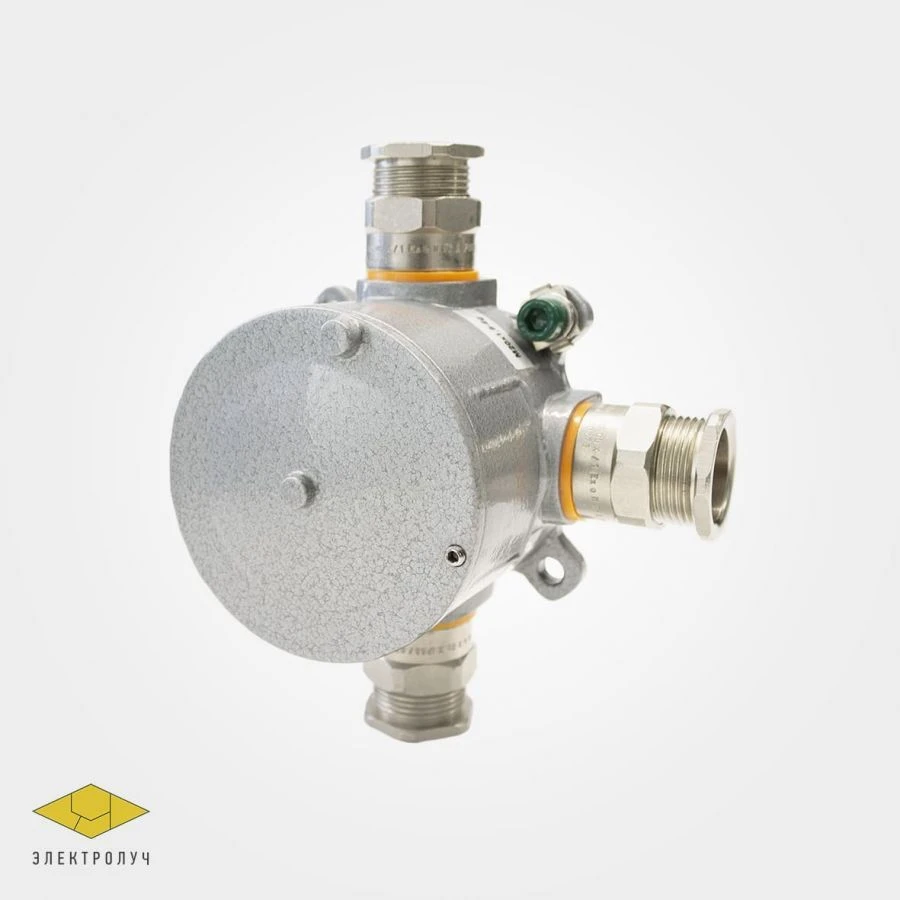

Explosion-proof distribution boxes KR-V64 are designed for making connections and branches of cable wiring laid indoors and outdoors in hazardous areas of classes 1 and 2 according to GOST R 52350.10, GOST R 52350.14 and other regulatory documents governing the use of explosion-proof electrical equipment. Boxes ??-?64 are very compact, convenient in application, designed for connection of cables with cross-section up to 2,5 square mm. Fastening to the wall is carried out on the holes in the body flanges with two M6 bolts. Explosion-proof box KR-B64 is supplied as a set with various cable glands and without them (the holes are closed with explosion-proof plugs). The set can also include a stationary terminal block of spring type WAGO or analogue, various types of explosion-proof cable glands and plugs.

Specifications

Rated supply voltage 500 V

Rated current 24 A

Maximum cable cross section 2.5 mm2

Number of cable glands 1...4 pc

Crimped cable range 20S16, 20S, 20

Type of cable routing Open laying, in metal sleeving, armoured cable, armoured cable laid in a pipe

Protection class against electric current I class according to GOST 12.2.007.0

Housing material Aluminum alloy with magnesium content less than 7.5 %

Mounting method Wall mounting, ceiling mounting

Operating temperature conditions -60...55 °C

Climatic version UHL1

Degree of protection IP IP66

Length 84 mm

Width 84 mm

Height 71 mm

Net weight 2 kg

Gross weight 2.5 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
