Explosion-Proof Distribution Box KR-V110 Available for Import

Explosion-Proof Distribution Box KR-V110 for Hazardous Areas

Electrical Circuit Protection
Manufacturer: ELEKTROLUCH LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

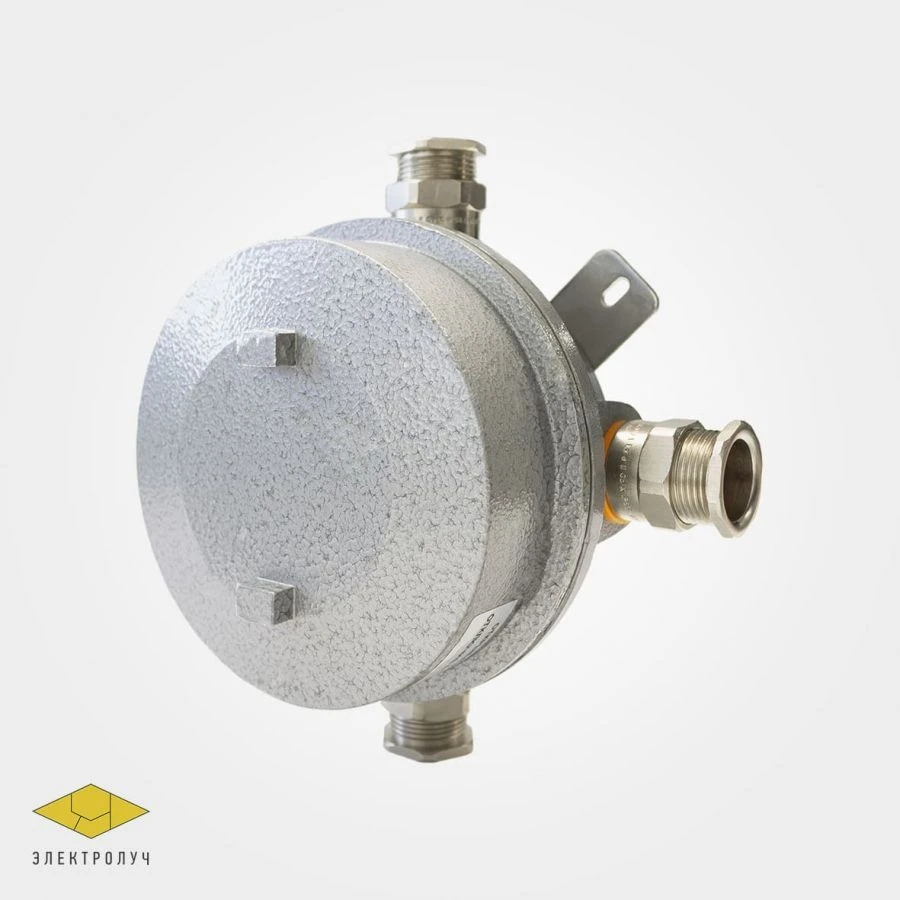

Explosion-proof distribution boxes KR-V110 are designed for making connections and branches of cable wiring laid in premises and outdoor installations in hazardous areas of classes 1 and 2 according to GOST R 52350.10, GOST R 52350.14 and other regulatory documents governing the use of explosion-proof electrical equipment. KR-B110 boxes are compact, easy to use, designed for connection of cables with cross-section up to 4 mm2. Fastening to the wall is carried out on the holes in the body flanges with two M6 bolts.

Explosion-proof box KR-B110 is supplied both complete with various cable glands and without them (the holes are closed with explosion-proof plugs). The set can also include a stationary terminal block of spring type WAGO or analogue, various types of explosion-proof cable glands and plugs.

Specifications

Crimped cable range
20S16, 20S, 20, 25
Type of cable routing
Open laying, in metal sleeve, armoured cable, armoured cable laid in pipe.
Rated supply voltage
500 V
Rated current
32 A
Maximum cable cross section
4 mm²
Number of cable glands
1...4 pcs
Protection class against electric current
I class according to GOST 12.2.007.0
Housing material
Aluminum alloy with magnesium content less than 7.5 %
Mounting method
Wall mounting, ceiling mounting
Operating temperature conditions
-60...55 °C
Climatic version
UHL1
Degree of protection IP
IP66
Length
140 mm
Width
150 mm
Height
Flat grinder, Specialised grinder mm
Net weight
4.6 kg
Gross weight
5.2 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
