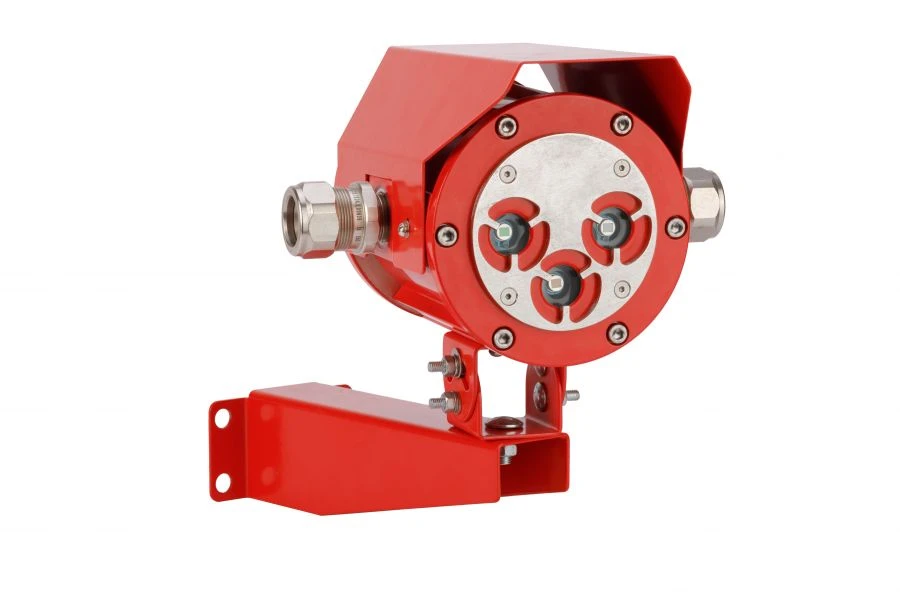

Explosion-Proof Flame Detectors Ladon IP330-M, IP330R-M for Hazardous Areas

Fire Alarm Detectors

Manufacturer: CJSC NPK "ETALON"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Ladon flame detectors are designed for round-the-clock continuous operation in hazardous areas of 1 and 2 classes and provide detection of flames emanating from fires corresponding to test foci TP5 and TP6 according to GOST R 53325-2012. Detectors model Ladon IP330-M have a sensor part sensitive to infrared radiation (three-spectral infrared sensor). They have increased noise immunity in the infrared range.

In addition to the main IR channel sensitive to hydrocarbon flame radiation, the detectors have two reference IR channels. Detectors have LED indication on the front panel and provide the following modes of operation: standby mode "Normal" (glow colour - green with a frequency of 0.5 - 1Hz); mode "Fire" (glow colour - red constant); mode "Fault" (glow colour - orange constant); mode "Test" (glow colour - orange with a frequency of 0.5 - 1Hz). The detector includes a bracket and a magnet for resetting the settings.

Specifications

Detector supply voltage

10...56 V

Heating circuit supply voltage

10...56 V

Power consumption in standby mode, no more than

0.25 W

Power consumption in "FIRE" mode, not more than

1 W

Power consumption of the heating circuit (switched on at t below minus 40 °C)

4 W

Explosion protection marking of detectors without index "P"

1Ex db IIB T6 Gb

Explosion protection marking of detectors with index "P"

1Ex db db IIB T5 Gb

Degree of protection against water and dust

IP66

Operating temperature of detectors without index "P"

-50...75 °C

Operating temperature of detectors with index "P"

-60...90 °C

Output signals (external connections)

Fire loop; FIRE relay; FAULT relay; RS-485 via MODBUS-RTU protocol; current output 4-20mA

Sensitivity to test fires TP-5 and TP-6 (detection range), not less than

25 m

Lightning protection elements

Check (on all I/O ports)

Viewing angle (cone)

90°

Response time (programmable)

3...30

Resistance to direct light - incandescent lamps

2000

Resistance to direct light - fluorescent lamps

6000

Number of cable glands

1...2 pcs

Wire cross section

0.1...2.5 mm²

Diameter of cables to be inserted

8...31 mm

Weight, aluminum alloy, not more

6 kg

Weight, stainless steel, not more

13 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
