Explosion-proof addressable manual fire detectors ExIP535-1V-ADR, ExIP535-1V-R3

Fire Alarm Detectors

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

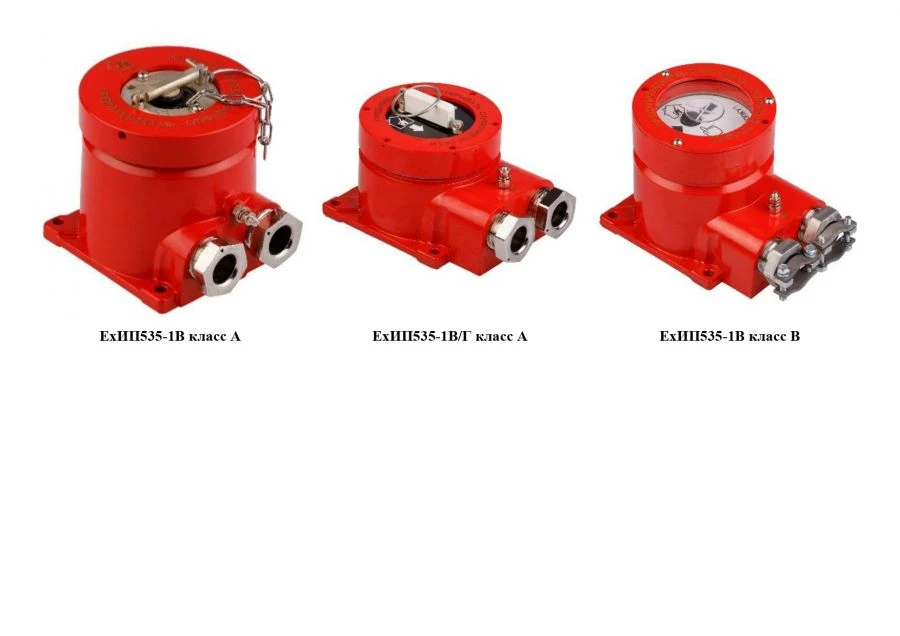

Fire detectors manual non-addressable explosion-proof ????535-1B

Address detectors manual fire detectors explosion-proof ExxIP535-1V-ADR, ExxIP535-1V/G-ADR class A, ExxIP535-1V-ADR class B, ExxIP535-1V-R3 classes A and B are designed for continuous round-the-clock operation in fire alarm and fire extinguishing systems. Addressable detectors ????535-1?-ADR, ????535-1?/?-ADR of class A, ????535-1?-ADR of class B are designed to work with a personal computer or programmable logic controller, communication via RS-485, MODBUS-RTU exchange protocol. The connection scheme is four-wire.
Addressable detectors ????535-1?-R3 of classes A and B and are designed to work with receiving and controlling devices (ACC), exchanging data via addressable communication lines (ALS) according to the R3 protocol. The connection scheme is two-wire.
They are available with a mechanical contact ????535-1?, ?????-1, ?????-2; with a magnetically controlled contact (reed switch) ????535-1?/?. Designed for use in hazardous areas of 1 and 2 classes.

Technical Specifications

Weight, not more	3 kg
Supply voltage (for detectors with index "ADR")	10...30 V
Supply voltage (for detectors with index "R3")	18...36 V
Current consumption in standby mode without polling (for detectors with index "ADR"), mA, not more than	5
Current consumption in actuation mode (for detectors with index "ADR"), mA, not more than	10
Current consumption during polling (for detectors with index "ADR"), mA, max.	SBVVBG
Current consumption in standby mode without polling (for detectors with index "R3"), mA, not more than	0.3
Current consumption during polling (for detectors with index "R3"), mA, max.	0.35
Operating temperature (without index "G")	-60...70 °C
Operating temperature (with index "G")	-60...85 °C
Explosion protection marking	1Ex db IIC T6 Gb
Degree of protection against water and dust	ExhIp535-1B-ADR/R3 class A - IP65; ExhIp535-1B/G-ADR class A - IP66; ExhIp535-1B-ADR/R3 class B - IP67
External connections	To the terminals on the board
Cross-section of wires to be connected	0.5...2.5 mm2
Wiring diagram	Four-wire
Number of cable glands (threaded plugs)	2 pc
Diameter of cables to be inserted	14...18 mm
Seismic resistance	9 MSK-64.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
