Electronic Clock Display TCH54 for Time, Date, and Temperature Monitoring

Electrical Measuring Devices

Manufacturer: ELECTROPRIBOR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

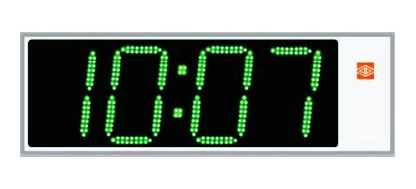

Electronic scoreboard-clock ??54 is designed to display the current time, date and temperature. Scoreboards have great potential for use in various enterprises and institutions. The functionality of the scoreboard allows you to monitor the microclimate of the premises (temperature), which makes it possible to use digital scoreboard in educational institutions.

For electronic scoreboard clocks are used super-bright LEDs and sensors that provide reliable and stable operation of the clock. Bright indicators allow you to visually read the current information as conveniently and quickly as possible, even in sunny weather. The viewing angle is 120°.

Programming of the scoreboard clock can be carried out by remote control (RC-5) or via RS485 interface.

Specifications

Overall dimensions, mm

500x170x40

Weight, kg, not more

1,6

Parameter display

Time and date; temperature

Display range

Temperature: -50 to +50°C; Hours: 00.00 to 23.59.

Uncertainty

0,1 s/day (running accuracy); ±2 °? in the temperature measuring range from -50 to -20 °?; ±1 °? in the temperature measuring range from -20 to +50 °?

RS485 communication interface

Quantity: 1; Modbus RTU protocol

Discrete outputs

Quantity: 1; DC voltage 300V, 100mA or AC voltage 200V, 100mA

Power supply voltage

85 to 253 VAC (50 ± 0.5) Hz or 120 to 265 VDC.

Power consumption from the power supply circuit, not more

17 B-A

Reprogramming

By remote control; via RS485 interface

Operating temperature range

From +5 to + 50 °C

Degree of protection

IP50

Average service life, at least

10 years

Average MTBF, not less than

50000 ?

Height of the indicator sign

140 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
