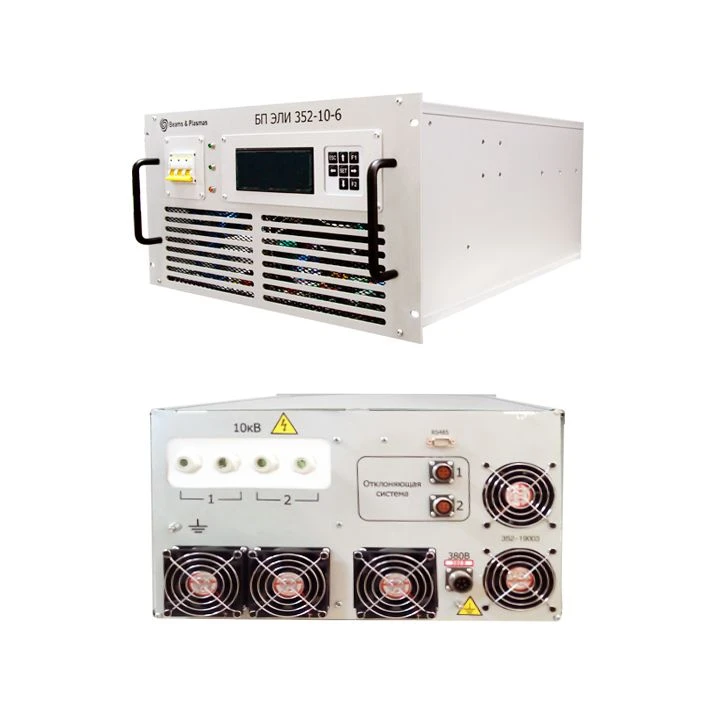

Electron beam evaporator power supply unit PS ELI 352-10-6 (6 kW)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Electron-beam evaporator power supply unit is designed for power supply of filament and anode voltage, control of two electron-beam evaporators (EBs) with individual settings of each of them.
The unit is equipped with:
- front control panel
- integrated overcurrent protection system
- inbuilt breakdown protection system with automatic reclosing
- RS-485 interface for communication with a computer
- Modbus RTU protocol control
*Operational Manual is available on request: LCMK.352.00.00.00.00.000 RE POWER SUPPLY UNIT OF ELECTRONIC-RAY ISPARITEL BP ELI 352-10-6
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.
The unit is equipped with:
- front control panel
- integrated overcurrent protection system
- inbuilt breakdown protection system with automatic reclosing
- RS-485 interface for communication with a computer
- Modbus RTU protocol control
*Operational Manual is available on request: LCMK.352.00.00.00.00.000 RE POWER SUPPLY UNIT OF ELECTRONIC-RAY ISPARITEL BP ELI 352-10-6
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.
Technical Specifications
| Assignment | Power supply and control of two electron beam evaporators (EBs) with individual settings for each of them |
|---|---|
| Dustproof | Yes - The unit housing is made of metal and has no exposed live parts |
| Cooling | Air |
| Type of construction | Built-in |
| Front control panel | Got it |
| Warranty period | 1 a |
| Climatic designs | GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2 |
| Power supply voltage | 380 ±10% V |
| Voltage regulation range | 4000-10000 V |
| Current control range | 0,005-0,6 A |
| Power control range | 20-6000 W |
| Maximum power | 6 kW |
| Stabilization modes | Voltage, current |
| Output voltage polarity | Negative |
| Accelerating voltage channel: Accelerating voltage (negative polarity) | 4-10 kV |
| Accelerating voltage channel: Accelerating voltage ripple, max. | 5 % |
| Accelerating voltage channel: Voltage stability during one hour, not worse | 2 % |
| Accelerating voltage channel: Voltage regulation discreteness | 1 % |
| Booster voltage channel: Maximum output current mA | 600 |
| Accelerating voltage channel: Breakdown protection | switch off with automatic re-activation |
| Boost voltage channel: overload protection | current limitation |
| Filament channel: Output voltage frequency | 20 |
| Filament channel: Voltage control range | 5-28 V |
| Filament channel: Current control range | 6-40 A |
| Filament channel: Operating modes: current stabilization, not worse | 2 % |
| Канал накала: Режимы работы: стабилизация мощности, не хуже % | 2 % |
| Filament channel: Operating modes: emission current stabilisation, not worse % | 2 (within 10 min.) % |
| Filament channel: Maximum power output | 800 W |
| Power supply connection diagram | TN-S |
| Interface | RS-485 |
| Data transfer protocol | ModBus RTU |
| Overall dimensions, (length x width x height) | 485x615x266 mm |
| Weight, not more | 30 kg |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
