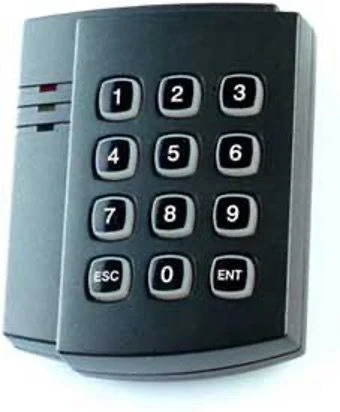

125 kHz RFID reader, model: Matrix-VII (E H Keys mod.)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

It is used in access control and management systems (ACS). The reader transmits to the controller the code of the brought identifier (card, key fob, etc.) standard E-Marine or HID ProxCardII or the code typed from the keyboard, via protocols iButton (Dallas Touch Memory) or Wiegand 26. The reader provides the ability to pass both with an identifier and without an identifier by typing a code on the keyboard.

Specifications

Operating frequency 125

Type of identifiers used EM-Marine, HID ProxCard II

Defining the card standard Automatic, without additional settings

Reading range 6...10 cm

Output interface Ibutton (Dallas Touch Memory), Wiegand-26

Maximum line length from reader to controller: Dallas Touch Memory No more than 15 m

Maximum line length from reader to controller: Wiegand Not more than 100 m

Light and sound indication Got it

External control of LED and sound Got it

DC supply voltage B1/B8 2100/900 MHz V

Maximum current consumption 150 mA

Dimensions 106x86x33 mm

Housing material ABS plastic

Operating temperature -40...50 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
