Available for Import

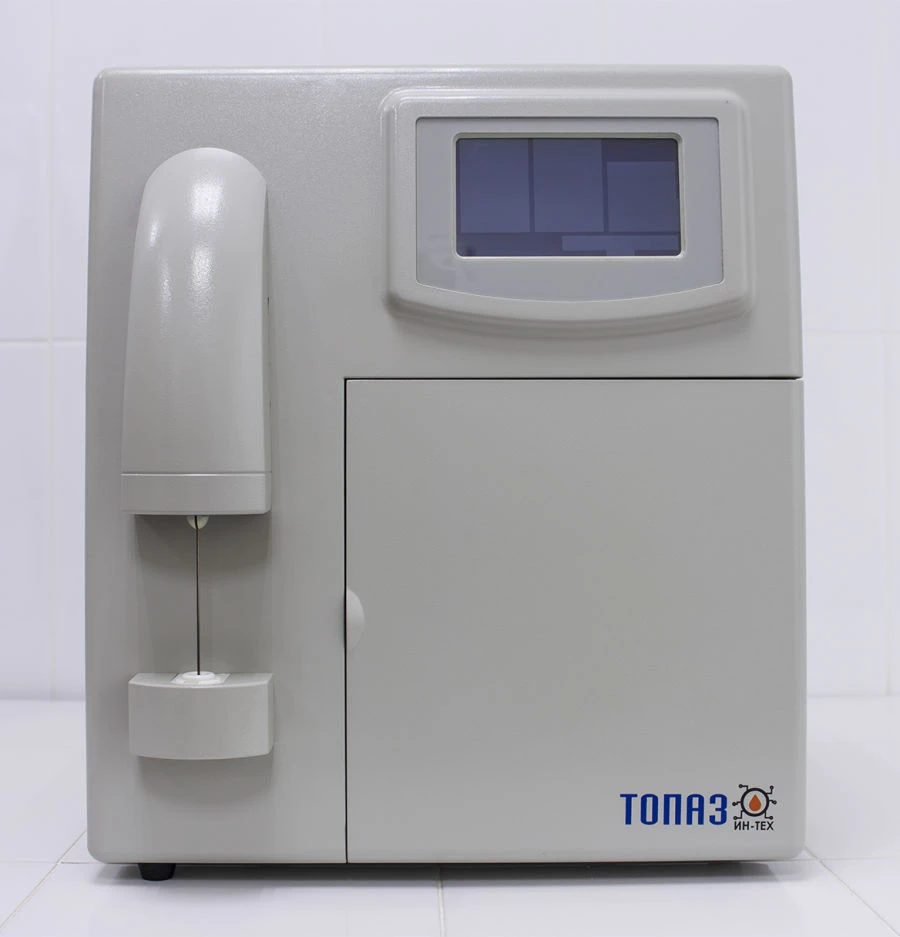

Electrolyte analyser "Topaz" according to TU 26.60.12-001-61991513-2016 with accessories

Diagnostic Medical Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

designed for diagnostic studies in blood, plasma, blood serum, human urine concentration of potassium ions (K+), ionised calcium (iCa2+), sodium (Na+), chlorine (Cl-), as well as to determine the acidity index pH.Scope of application: clinical laboratory diagnostics in medical institutions. Indications for use: monitoring the balance of electrolytes in the human body in the process of treatment.

Technical Specifications

Number of stored measurement results	255 pc
Measured parameters	Na+, K+, Cl-, iCa, pH
Design parameters	TCa (total calcium)
Samples under study	Whole blood, plasma, serum, urine
Volume of required sample (blood, urine), µl	150
Measurement principle	Direct potentiometry
Display type	Monochrome LCD display
Width	95 mm
Height	55 mm
Diagonal	125 mm
Resolution, dots/cm2	100
K+	1.42...15.4
Na+	15.5...220
Cl-	18...205
Ca++	0.55...4
PH	7...9
K+	3 %
Na+	3 %
Cl-	3 %
Ca++	5 %
PH	2 %
K+	1 %
Na+	1 %
Cl-	1 %
Ca++	3 %
PH	2 %
Transfer effect, Q, %	1.5 %
Scope	1000
Stability after installation in analyser, days	Flat grinder, Specialised grinder
Built-in thermal printer, paper width	57 mm
Data Entry	Touch screen
Possibility to connect barcode scanner	availability
Possibility to connect automatic sample feeder	availability
Number of samples simultaneously loaded, when using the ADF.	20 samples + 2 ext.
Data transfer	RS232 port
Time to perform one analysis	60
Waste container integrated in the Standard Block	availability
Operating temperature range	10...35 °C
Noise level	55
Width	380 mm
Depth	330 mm
Height	410 mm
Weight	10 kg
Frequency	SBVVBG
Voltage	220 V
Topaz electrolyte analyser	1 pc
Power cable	1 pc
Measuring electrode "K+"	1 pc
Na+ measuring electrode	1 pc
Measuring electrode "Cl-"	1 pc
Measuring electrode "iCa2+"	1 pc
Measuring electrode "pH"	1 pc
Reference electrode	1 pc
Standards unit	1 pc
Internal K/ref filling solution, 15 ml vial, 15 ml	3 pc
Internal Na/Cl/pH filling solution, vial, 15 ml	1 pc
Filling solution for internal iCa2+, vial, 15 ml	1 pc
Solution for daily flushing/cleansing, vial, 100 ml	1 pc
Solution for weekly flushing/cleaning, vial, 100 ml	1 pc
Urine diluent solution, vial, 100 ml	1 pc
Conditioning solution for sodium electrode, vial, 100 ml	1 pc
Operating Instructions	1 pc
Passport	1 pc
Spare parts kit	Comparison membrane - 10 pcs.; pump tubes - 2 pcs.; sealing ring - 2 pcs.; spare measuring electrode - 1 pc.
Thermal paper 57x12 mm, roll, 30m	1 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
