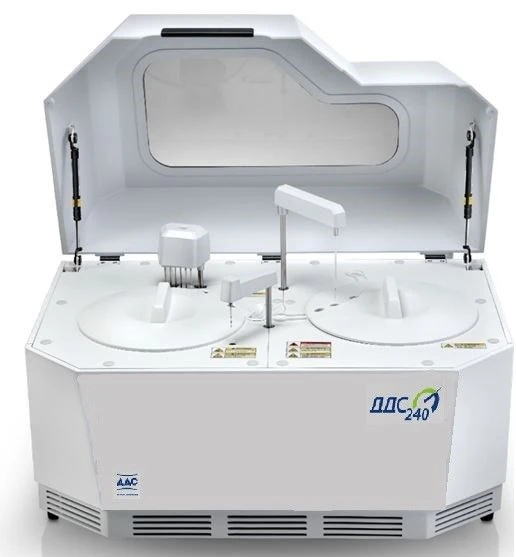

Analyser automatic biochemical DDS-240 with accessories according to TU DALE.941412.002TU
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The first fully domestic analytical system with a capacity of 240 tests per hour.-Analyser and reagents produced by JSC "DIACON-DS" (Russia).-System barcoded vials without transfusion.-Automatic accounting of test statistics and costs. -Voice and sound notifications.-Maximum security in auctions.-Always available in DIACON JSC warehouse.Optimal in laboratories with low and medium productivity 50 - 100 patients per day for 8 - 12 parameters (about 500 biochemical tests per day).Can be used as the main analyser in small, express laboratories and as an auxiliary analyser in laboratories with high productivity.
Technical Specifications
| Number of tests performed/h | 240 pc |
|---|---|
| Power consumption, VA | 350 |
| Weight of the equipment, kg | 75 kg |
| Dimensions of the equipment (height x length x width), mm | 580x855x550 |
| Light source | Long life halogen lamp |
| Length of optical path, mm | 5 mm |
| Operating wavelengths | 8 pieces in the range 340 - 670 nm |
| Performance | 240 tests/ per hour (in monoreagent (fast) mode) |
| Number of rotors | 1 ротор |
| Number of dosing devices | Single sample and reagent dispenser |
| Number of cuvettes in the reaction rotor | 81 (9 cuvettes/section x 9 sections) |
| Mixing device | Separate mixer mixing the reaction mixture inside the cuvette |
| Types of analyses | Photometric analysis, turbidimetry |
| Automatic dilution of biomaterial on board of analyser | availability |
| Connection to LIS | availability |
| Barcode scanner for tubes and/or reagents | Availability of an inbuilt barcode scanner for samples and reagents. |
| Automatic detection of reagent information by barcode | Availability (identification of reagent name, vial volume, reagent type, reagent lot, expiry date, number of samples/reagents remaining) |
| Automatic detection of liquid level | Presence (built-in capacitive liquid level sensor for reagent/sample) |
| Blocking of test execution when a mechanical obstacle is detected (collision protection) | availability |
| Minimum amount of sample required for measurement, µl | 2 |
| Step of sample dispensing volume, µl | 0,1 |
| Type of biomaterial | Serum, plasma, urine, cerebrospinal fluid |
| Maximum number of samples to be loaded on board the analyser at one time, pieces | 40 pc |
| Maximum number of different tests that can be performed on the analyser without changing reagents | 40 pc |
| Use of primary tubes without adapters | Availability (tube diameter range 12 - 13 mm, length range 68.5 - 100 mm) |
| Reusable UV permeable plastic reaction cuvettes | availability |
| Automatic reaction cuvette washing with drying function | Presence of automatic cuvette washing station on board the analyser (6 cleaning steps using different washing solutions). |
| Automatic internal and external flushing of the metering unit | availability |
| Detector type | Photodiode array, dichroic mirror system |
| Urgent sample measurement, interruption of analyser operation for urgent sample measurement | availability |
| Minimum dosing volume of reagent, µl | 150 |
| Maximum dosing volume of reagent, µl | 450 |
| Reagent volume step, µl | 1 |
| Display of response graphs | Presence (displaying on the screen a graph of change of optical density in the cuvette over time) |
| Water consumption litres per hour | 5 |
| Monitoring of analyser lamp stability | availability |
| Reaction cuvette transparency monitoring | availability |
| Monitoring of the analyser main units | availability |
| Built-in quality control programme | Availability, automatic determination of mean value, standard deviation, coefficient of variation, range |
| Calibration variants | By factor, linear, polygonal, log-logit, exponential, spline and spline 2. |
| Setting and displaying calibration parameters | Presence (calibration curve display on the screen. Calibration type selection) |
| Unified data exchange protocol | availability |
| Duration of warranty period | 12 months |
| Type of reagent/sample rotor | Swivelling, removable |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
