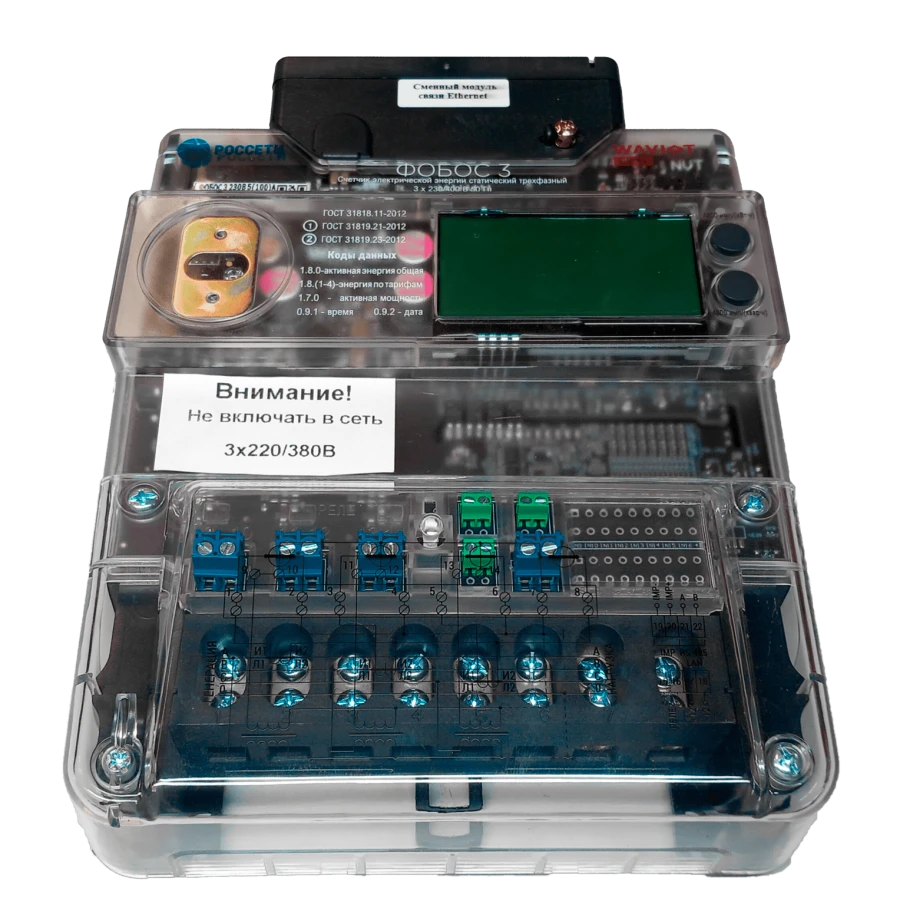

Electricity meter static three-phase FOBOS 3T 57,5V 5(10)A IQORTLM-A Ethernet

The meter is designed for multi-tariff metering of active and reactive electrical energy in accordance with the requirements of GOST 31818.11-2012, GOST 31819.21-2012, GOST 31819.23-2012, measurement of network parameters and quality indicators of electrical energy in accordance with the requirements of GOST 30804.4.30-2013 in three-phase four-wire and three-wire electrical networks of alternating current with frequency of 50 Hz. The meter is designed for operation both as an independent device and as part of information measurement systems, software and hardware complexes of control and commercial electricity metering. A distinctive feature of the meter modification is: transformer connection (using current and voltage transformers); availability of communication interfaces NB-Fi, RS-485, replaceable Ethernet communication module; maximum current 10 A; installation of the meter panel on screws or DIN rail.
