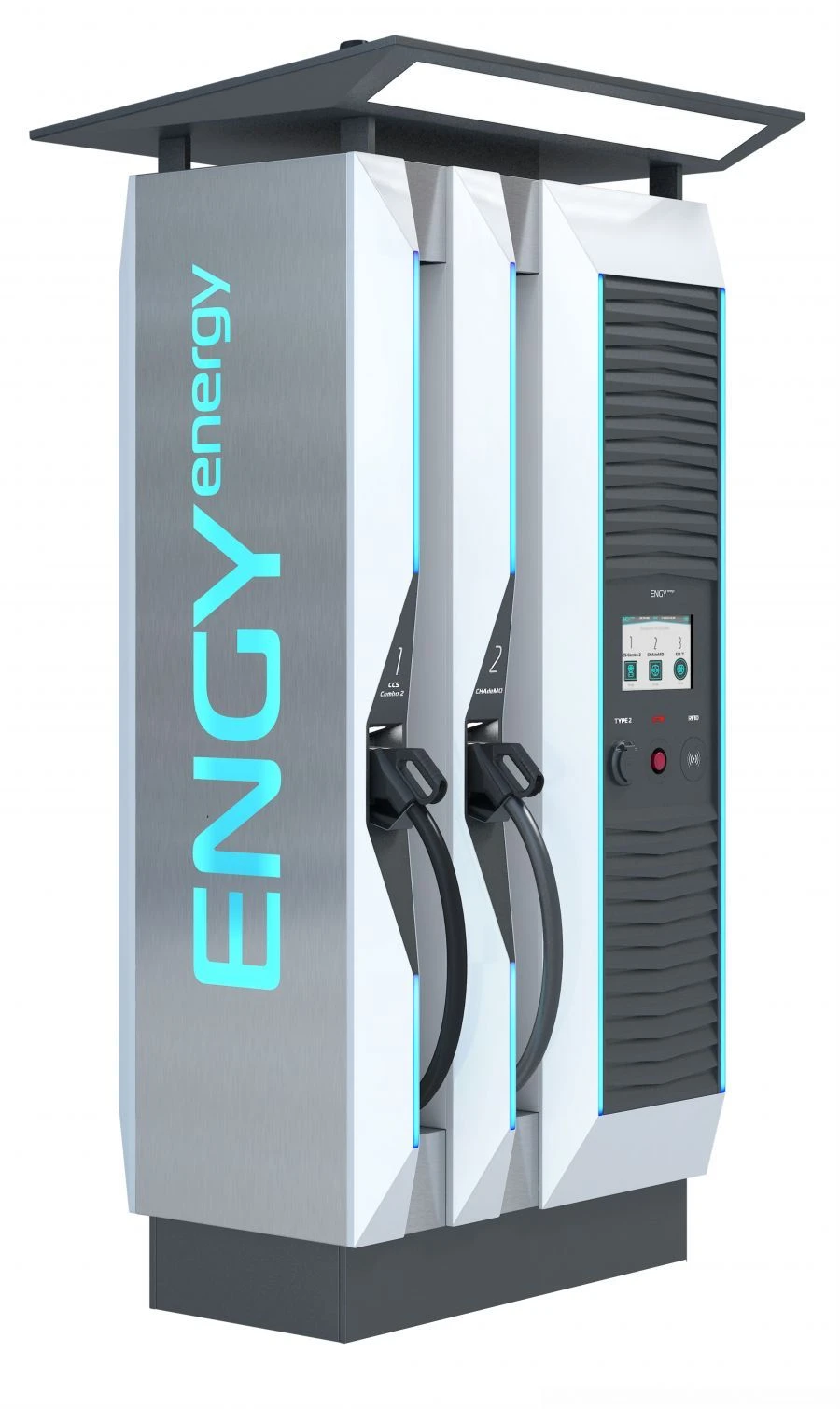

Electric vehicle charging station, model CS3.1

Fast charging station for electric vehicles, model CS3.1 is designed for charging batteries of electric vehicles.

Up to 3 electric vehicles can be charged simultaneously. The unique cable suspension system prevents mechanical damage and contamination.

Main features:
- station power selectable from 60 to 180 kW from the switching range: 60/90/120/150/180 (when 30 kW charging modules are installed), 80/120/160 (when 40 kW charging modules are installed)
- direct current (DC): up to 60 kW (2 connectors to choose from: CCSCombo2, CHAdeMO, GB/T);
- alternating current (AC): up to 44 kW (1 connector to choose from: Type1 socket/ Type2 socket/GB/T-AC socket);
- protection class IP 54
- charging protocols IEC 61851-23 PLC (CCS Combo 2); CAN 2.0 (CHAdeMo); GBT 20234/27930; ISO 15118
- overall dimensions (H x W x D): 2530 x 1390 x 1050 mm;
- mass: 700 kg
- operating mode: temperature from -25 ?C to +40 ?C, humidity from 5% to 95%
