High-voltage static converter PVA-40-05-U1

Static Power Converters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

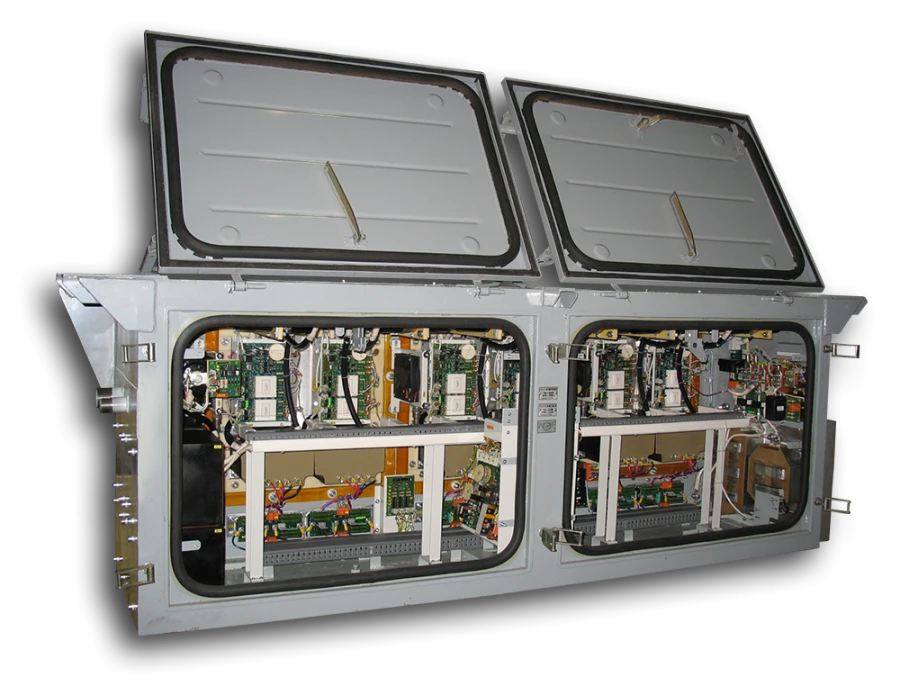

PVS-40-05-U1 is designed to provide centralised power supply from the high-voltage train main. The converter is installed on the cars of the trains of the permanent formation of "Premium" class trains Moscow - Samara, "Nevsky Express", "Krasnaya Strela". PVS-40-05-U1 consists of high-voltage (HV) and low-voltage (LV) parts, which are located in 2 standard hermetic undercarriage boxes of IP54 version. The converter input can be supplied with any of the following supply voltages: 3000V and 1500V DC, 3000V and 1500V AC 50Hz and 1000V AC 16 2/3 Hz. PVS-40-05-U1 in parking can function in full at supply from external AC network 3 x380 V; 50 Hz with deviations of network voltage 10% from the nominal value. Output voltage of 2 channels of the high-voltage part of the converter can vary depending on the composition and characteristics of power consumers. There are 122 units in operation.

Specifications

Output rated power (compressor motor supply channel) 15 kW

Overall dimensions of the VSP cabinet (DxWxH) 2150x765x730 mm

Overall dimensions of the NSP cabinet (DxWxH) 2060x670x725 mm

Output power (VHF condenser fan motor supply channel) 3

Rated current (VHF condenser fan motor supply channel) 9.2 A

Frequency (VHF condenser fan motor supply channel) SBVVBG

Number of phases (VHF condenser fan motor supply channel) 3 pc

Output line voltage (VHF condenser fan motor supply channel) 220 V

Input voltage (VHF condenser fan motor supply channel) 425 V

Maximum power output (compressor motor supply channel) 18

Rated current (compressor motor supply line) 39 A

Frequency (compressor motor supply channel) SBVVBG

Number of phases (compressor motor supply channel) 3 pc

Output line voltage (compressor motor supply) 220 V

Input voltage (compressor motor supply) 425 V

Input voltage (supply voltage of the supply fan motor) 425 pc

Output line voltage (supply line to supply fan motor) 220 V

Number of phases (supply duct of supply fan motor) 3 pc

Frequency (supply duct of supply fan motor) SBVVBG

Rated current (supply duct for supply fan motor) 7.9 A

Output power (supply duct for supply fan motor) 3

Input voltage (DC consumer power supply channel, including battery charging) 160 V

Output voltage (DC consumer power supply channel, including battery charging) 110 V

Maximum current (DC consumer power supply channel, including battery charging) 140A, including battery charging current - 25A

Output maximum power when supplied from the high-voltage trunk line (DC consumer supply channel, including socket). 20 kW

Output maximum power when supplied from 3x380V, 50Hz mains (DC power supply channel including battery charging) B1/B8 2100/900 MHz kW

Input voltage (AC consumer power supply channel) 425 V

Output line voltage (AC power supply channel) 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
