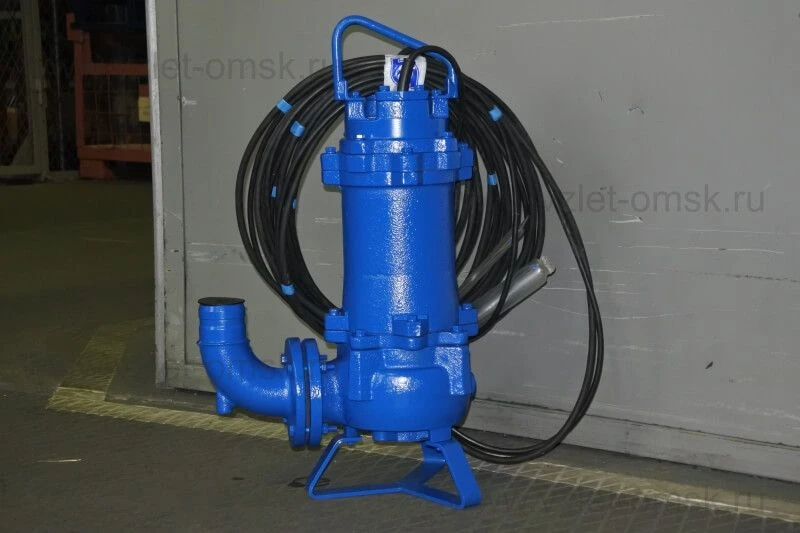

Electric submersible pump "Irtysh" PFS 50/125-1,1/2-006

Designed for pumping domestic and industrial contaminated liquids (faecal, sewage, industrial effluents), with hydrogen pH=6,0....9,0 with density up to 1100 kg/m³, temperature up to 323K (50°C), with content of various non-abrasive suspended particles with maximum size 40mm including short and long fibre particles, concentration up to 2% by mass, abrasive suspended particles not more than 1% by volume, size up to 5mm and microhardness not more than 9000 MPa. It fulfils the highest requirements for pumping various liquids. The electric pump is completed with a control cabinet, which provides and guarantees uninterrupted operation in various modes, eliminates breakdowns. The temperature of the motor windings is controlled, and in the oil chamber there is a moisture sensor to protect against leaks.
The electric pump can be manufactured in various versions horizontal, vertical, explosion-proof.
