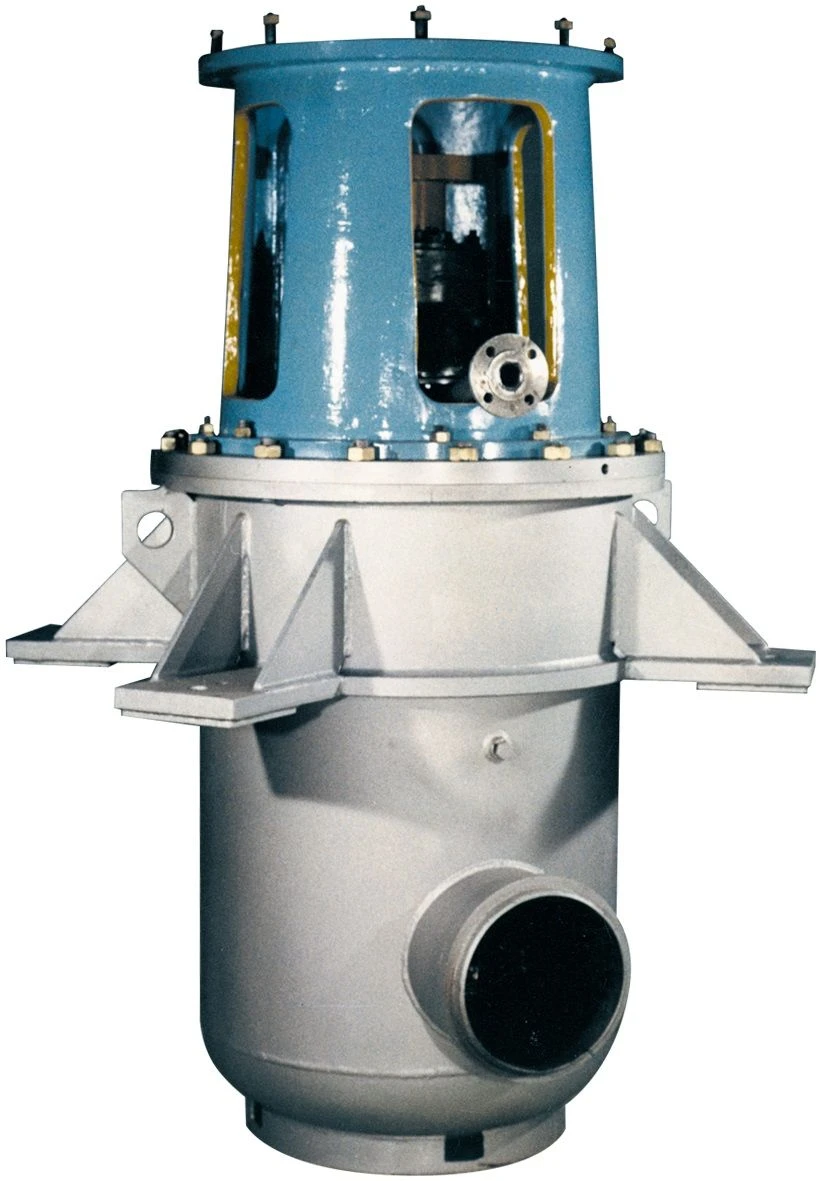

KsV 125-55 pump and electric pump units on its basis

Condensate pumps of KsV 125-55 type and electric pump units on their basis are designed for pumping condensate from exhaust steam of stationary steam turbines and heating steam from heat exchangers of thermal power plants operating on organic fuel, as well as for pumping liquids similar to condensate in viscosity and chemical activity.
The pump is centrifugal, vertical, double-casing. The outer casing is welded with supports for fixing the unit to the foundation. It consists of receiving and pressure parts. The inner casing consists of rotor, mechanical seal, bearings, inlet housings, sections with guide apparatuses and pressure cover.
FEATURES/BENEFITS:
-Reduced axial force by adjusting the size of the discharger.
-Flow components are made of alloy and stainless steel;
-Optimal ratio between impeller blades and guide channels reduces vibrations;
-High efficiency flow section
