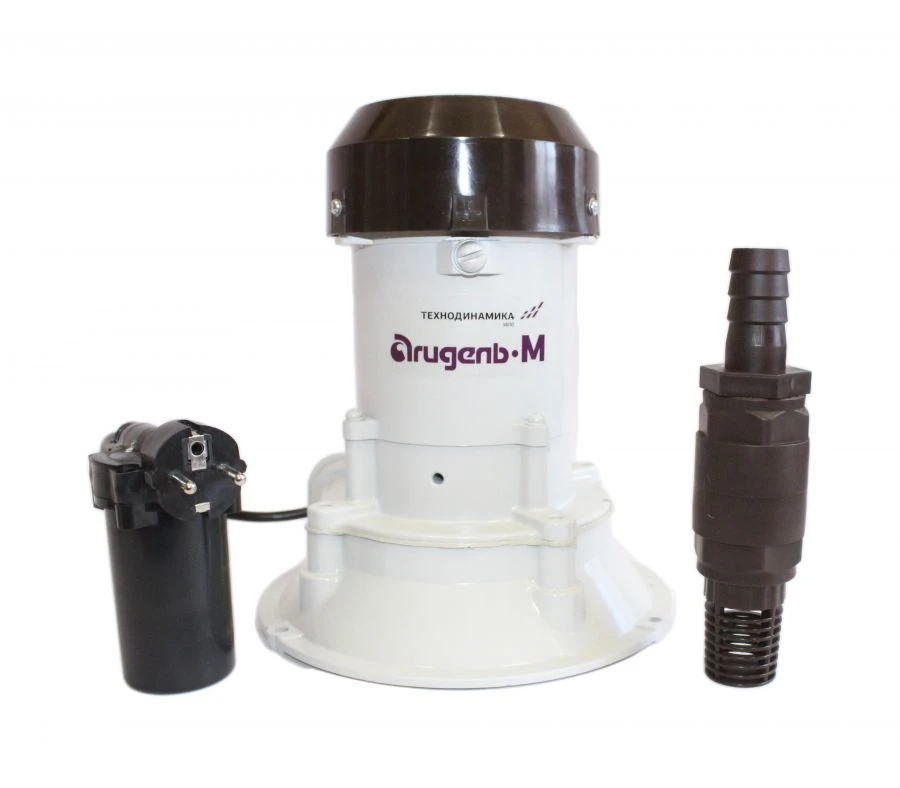

Electric household centrifugal pump BC-0.4-20-U1.1 "Agidel-M"

Designed for pumping fresh water from wells, open ponds and wells under conditions:
-maximum temperature of pumped water up to 350C;
- ambient temperature from +10C to +400C;
-relative air humidity up to 95% at temperature +250C;
- altitude above sea level not more than 1000m.
Unit designation BCS-0,4-20-U1.1 "Agidel-M":
B - electric household pump;
Ts - centrifugal;
C - self-priming;
0,4 - volumetric delivery, n x10-3, m3/s;
20 - nominal head, m;
U1.1 - climatic execution.
Brief characteristics (basic):
Power consumption - 370 W
Voltage - 220 W
Suction height - 8 m
AC frequency - 50 Hz
Degree of protection - IP24
Working position - vertical
