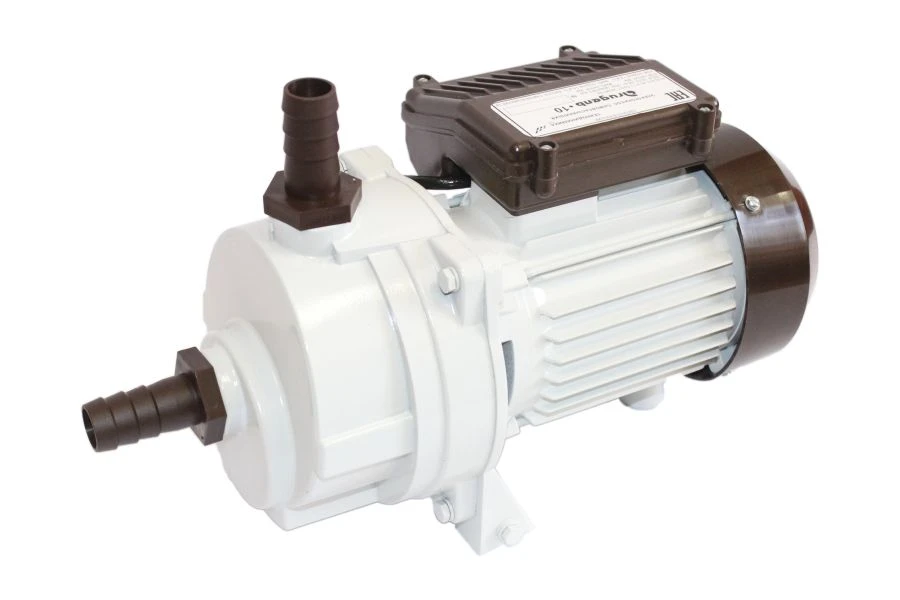

Electric household centrifugal self-priming pump BCS-0,5-20-U1.1 "Agidel-10"

Designed for pumping fresh water from wells, open ponds and boreholes under conditions:
-maximum temperature of pumped water up to 350C;
- ambient temperature from +10C to +400C;
-relative air humidity up to 95% at temperature +250C;
- altitude above sea level not more than 1000m.
Unit designation BCS-0,5-20-U1.1 "Agidel-10":
B - electric household pump;
Ts - centrifugal;
C - self-priming;
0,5 - volumetric delivery, n x10-3, m3/s;
20 - nominal head, m;
U1.1 - climatic execution.
Brief characteristics (basic):
Power consumption - 700 W
Voltage - 220 W
Suction height - 7 m
AC frequency - 50 Hz
Degree of protection - IP24
Working position - horizontal.
