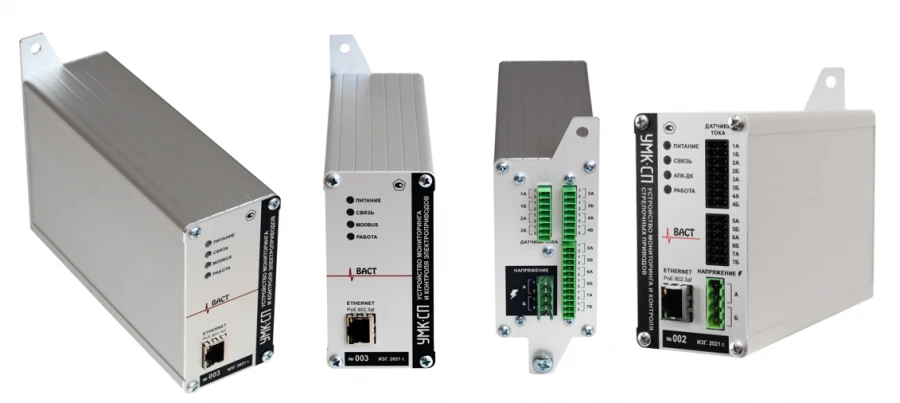

Electric drives monitoring and control device UMK-SP

UMK-SP is intended for use as an information-measuring device for operational control of the actual state of AC electric drives as part of automatic and automated systems of control and management of technological processes (ACS TP), as well as an autonomous information-measuring device. It is designed for remote, continuous and safe control of electric drives by supply current of the drive, carries out control and diagnostics on the basis of comparison of current values of voltage, current and active power measured in the working electric circuits with the set threshold values. It provides transmission of measured values of electrical parameters to the process monitoring and control system, as well as to the operator's workplace equipment via Ethernet network interface. Industrial protocol Modbus TCP/IP is used for interfacing with the process control system. It has 2 voltage measurement channels and 14 k...
