Available for Import
BARS filmless automated radiometric system ?325-1420mm
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

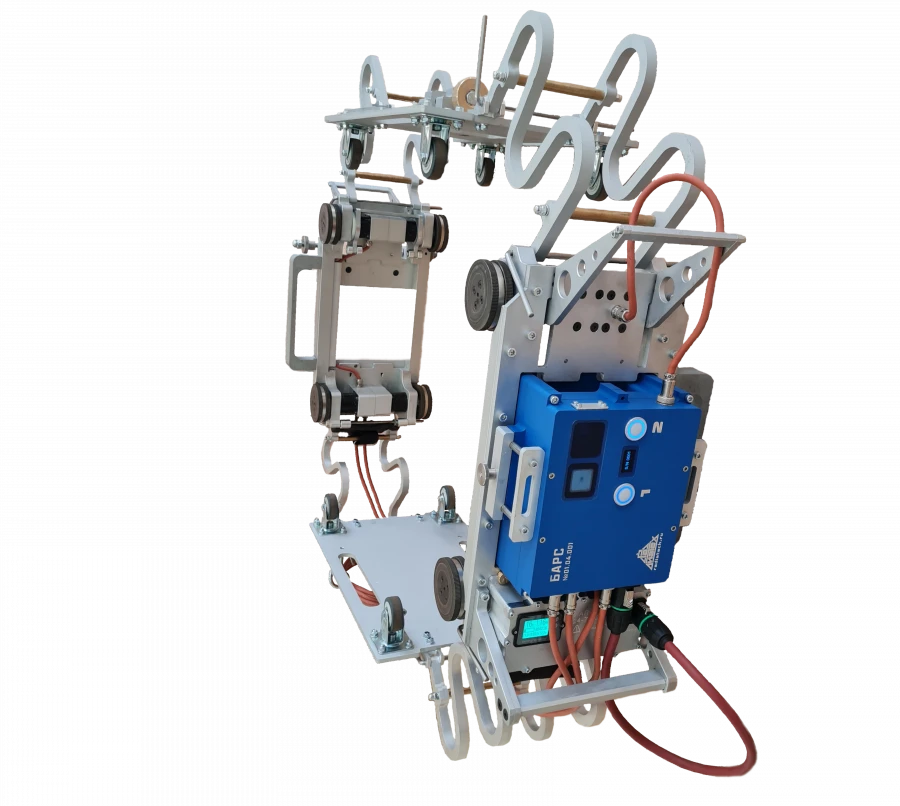

The BARS system is designed for real-time digital X-ray quality control of welded joints in laboratory and field conditions:
-welded joints up to 100 mm in size on the "ellipse".
-ring welded joints of metal pipes with diameter from 325 mm to 1420 mm by automated method through two walls - "frontally";
-ring welded joints of metal pipes with a diameter of 325 mm to 1420 mm by automated method through one wall - "panoramic".
BARS-Client" software is a proprietary development of "RaDiaTech" LLC. Possibility of equipment maintenance, remote diagnostics, debugging and software update. The equipment meets the modern requirements of normative documents in the field of non-destructive testing.
-welded joints up to 100 mm in size on the "ellipse".
-ring welded joints of metal pipes with diameter from 325 mm to 1420 mm by automated method through two walls - "frontally";
-ring welded joints of metal pipes with a diameter of 325 mm to 1420 mm by automated method through one wall - "panoramic".
BARS-Client" software is a proprietary development of "RaDiaTech" LLC. Possibility of equipment maintenance, remote diagnostics, debugging and software update. The equipment meets the modern requirements of normative documents in the field of non-destructive testing.
Specifications
Limits of permissible absolute error of measurement of linear dimensions
0.15 mm
Sensitivity of control according to GOST 7512
Grade 1
Sensitivity of control according to GOST 7512-82
Grade 1
Sensitivity of control according to GOST ISO 17636-2 2017
class A
Size of the sensitive area of the detector
160 mm
Energy range
250 kV
Pixel size
0.125 mm
