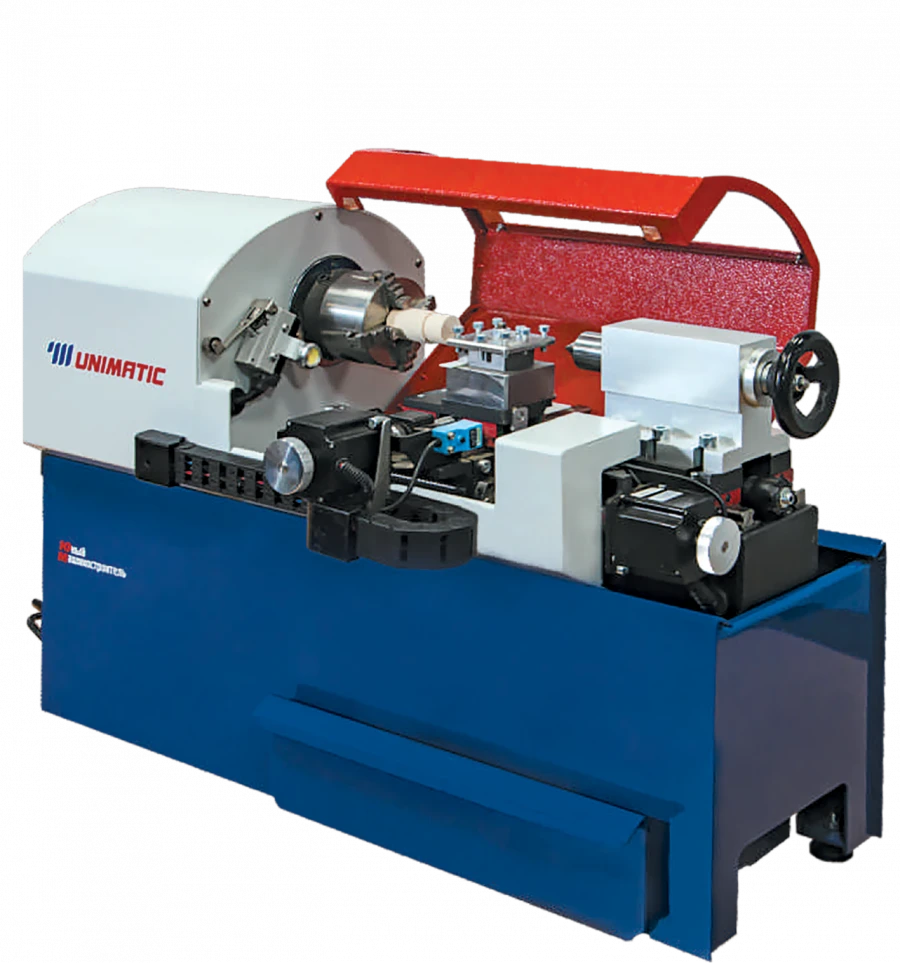

Educational CNC Mini Lathe Machine Unimatic UM-T for Precision Training

The educational and career-orientation mini CNC lathe "Unimatik YUM-T" is a PC-controlled two-axis desktop mini CNC lathe. It complies with the industrial standard in terms of design and operation. The workpiece is clamped in a three-jaw chuck.

It is designed for turning parts such as "flange", "roller", complex surfaces such as "ball stud", for drilling holes in the axis of parts. The machine can process materials made of wood, plastic and light alloys. Range of spindle speed - 300 - 2100 rpm; maximum torque on the spindle at 2 000 rpm - 2.6 Nm; maximum machined diameter of the part above the slide X - 76 mm; movement along the X axis - 55 mm; movement along the Z axis - 140 mm; maximum length of the part - 140 mm; chuck diameter - 80 mm.
