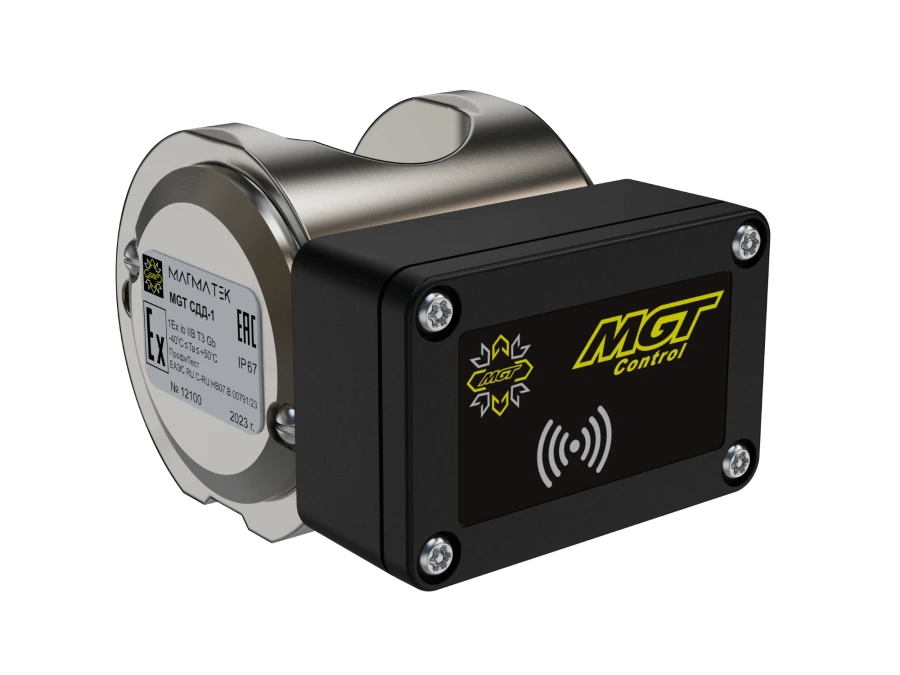

Dynamometric sensor "MGT SDD-1"

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Dynamometer sensor MGT SDD-1 is designed to record dynamograms of a rod deep well pump (BHP). The sensor is installed between traverses of the rope suspension of the BOPP and provides synchronous recording of:- absolute load on the rod;- rod displacement.As an additional function on the basis of the recorded data and reference parameters of the well the calculation of the well flow rate is made. Inside the hermetically sealed casing there is an electronic module and a power cell designed for the whole service life of the device. Communication with the sensor is carried out via Bluetooth 4.x (Bluetooth Low Energy) radio channel.

Technical Specifications

Product weight	Less than 1.2kg.
Product life	More than 5 years
Recommended calibration intervals	1 year
Operating temperature range	-40 to +50 deg C
Method of establishing communication with the product	NFC
Communication channel range	More than 30 m
Sensor communication channel	Bluetooth LE 4.x (Bluetooth Low Energy)
Nutrition	Built-in maintenance-free battery
Continuous operation time of the product in dynamogram recording mode	More than 100h.
Resolution capacity by load	Less than 0.1 per cent of full scale
Accuracy of load measurement	Less than 1 per cent of full scale
Range of controlled movements with swing rate	0.5 to 12 kach/min.
Range of monitored movements	0...20 m
Range of monitored loads	0 to 10 000 kgf

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
