DVAK B-160-01 chilled raw material sheeter
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

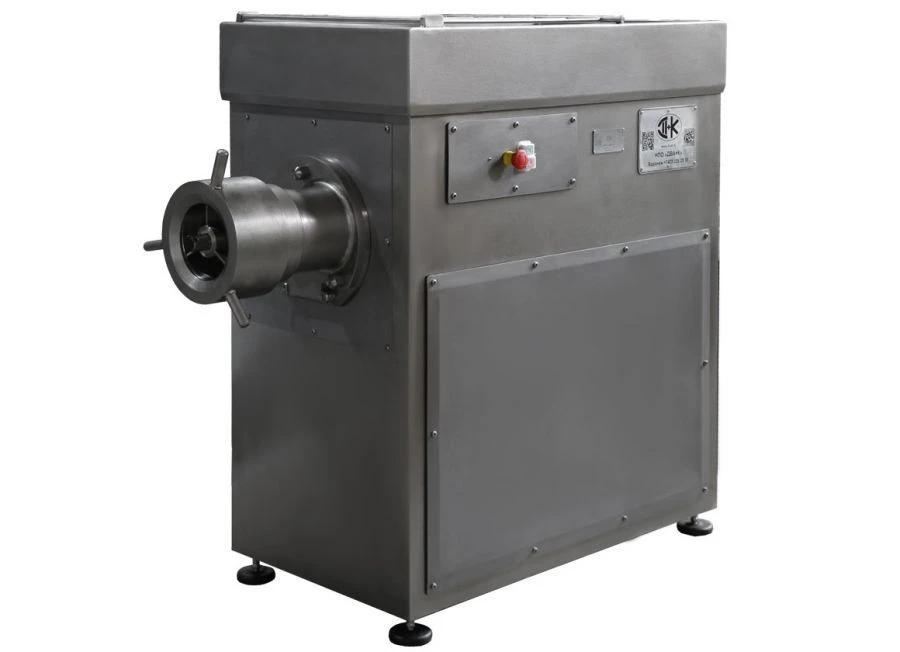

DVAK V-160-01 meat grinder is designed for grinding boneless fat-free meat, vegetables, cheese, dried fruits, nuts and other food raw materials.
- The twin-screw design: the first screw is the feed screw, the second screw is the working screw, effectively feeds the raw material into the cutting zone.
- Sufficiently comfortable cutting conditions are ensured by the fact that with a grating diameter of 160 mm there is less pressure of the raw material on the cutting block, as a result of which the muscle fibres are not crumpled.
- The hammers are available in fully stainless steel - all parts in contact with food raw materials as well as the housing are made of stainless steel, except for the gearbox, pulleys and under-motor plate.
- The use of a special reinforced auger and a more powerful electric motor 30kW (optional at extra cost), allows you to grind frozen raw materials up to -10 degrees C on the output grate 8-10 mm. (The raw material must first be passed through the block cutter).
- It can be completed with a veining device.
- The twin-screw design: the first screw is the feed screw, the second screw is the working screw, effectively feeds the raw material into the cutting zone.
- Sufficiently comfortable cutting conditions are ensured by the fact that with a grating diameter of 160 mm there is less pressure of the raw material on the cutting block, as a result of which the muscle fibres are not crumpled.
- The hammers are available in fully stainless steel - all parts in contact with food raw materials as well as the housing are made of stainless steel, except for the gearbox, pulleys and under-motor plate.
- The use of a special reinforced auger and a more powerful electric motor 30kW (optional at extra cost), allows you to grind frozen raw materials up to -10 degrees C on the output grate 8-10 mm. (The raw material must first be passed through the block cutter).
- It can be completed with a veining device.
Specifications
Material
stainless steel AISI 304
Installed power
15 kW
Hopper capacity
70 l
Feeding height of the raw material to be chopped
1220 mm
Discharge height of chopped raw material
750 mm
Feed screw speed
156
Rotational speed of the working auger
260
Overall dimensions d.w.h.
1350 x 610 x 1220 mm
Weight
600 kg
Technical capacity, kg/hour
3000
