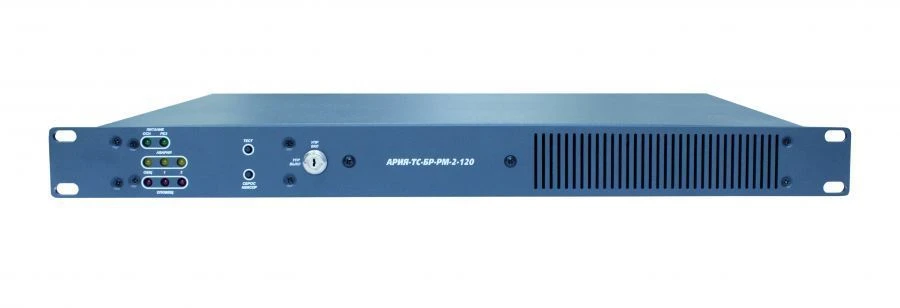

Dual zone expansion unit with high voltage output ARIA-TS-BR-RM-2-120

Security and Fire Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Two-zone expansion unit with high-voltage output is designed to work as part of the transformer-based ARYA-TS voice alarm system as a power amplifier of the audio signal received from the ARYA-TS-BRO series voice alarm unit and is used to increase, if necessary, the number of connected speech sirens.

Specifications

Operating temperature range ?10…+55 °C

Weight 3.75 kg

Overall dimensions 482x43x298

Maximum number of speech sirens to be connected 2x120 pc

Recommended external battery capacity 26

External battery operation time in alert mode 3

External battery operation time in standby mode 24

Maximum resistance of control line conductors SBVVBG ohm

Maximum impedance of conductors of the public address line 40 ohm

Voltage in the notification line 100 V

Number of control lines 2 pc

Number of notification lines (zones) 2 pc

Number of alarm inputs 2 pc

Frequency range 16...16000

Maximum power output 2x120 W

Power consumption 400

Power supply voltage from standby source 24 V

Main supply voltage 220 V

Degree of protection of the shell (IP) 20

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
