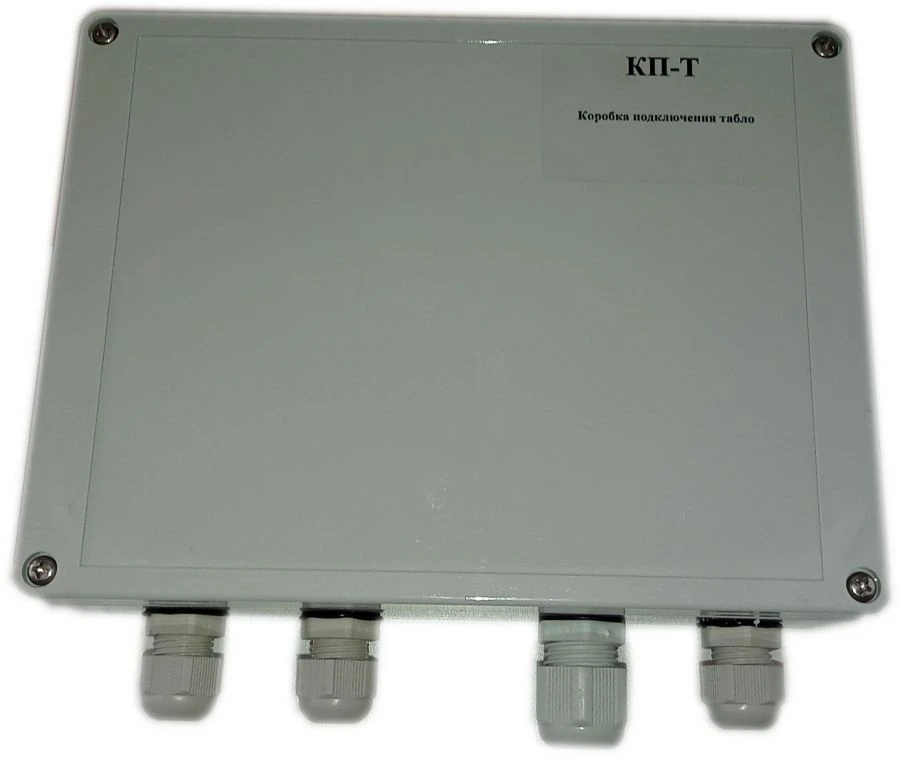

Connection box of scoreboard connection of automatic speech warning system RECOR KP-T

Security and Fire Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Board connection box KP-T provides addressable switching on of light fire and security siren. It is used in conjunction with the scoreboard control controller (KUT). Addressable notification is achieved by receiving a control command via RS485 interface. KP-T are designed for indoor use, have a wall mount, small size, low power consumption, equipped with a protection circuit against short circuit, as well as against polarity reversal of the power supply.

Technical Specifications

Assignment	Addressable switching on of the light fire and security siren.
DC input supply voltage	NZ-150-14,5 V
DC supply output voltage	12/24 V
Maximum distance of the scoreboard from KP-T	5 m
Control protocol	Modbus
Maximum range of reception, via unshielded twisted pair cable of at least 0.5 mm2 cross section	1200 m
Rated voltage in the power supply line of addressable devices	NZ-150-14,5 V
Overall dimensions (H x W x D)	200x170x55 mm
Weight of the unit without packing, not more	0.3 kg
Operating temperature	0 °C to +40 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
