Available for Import

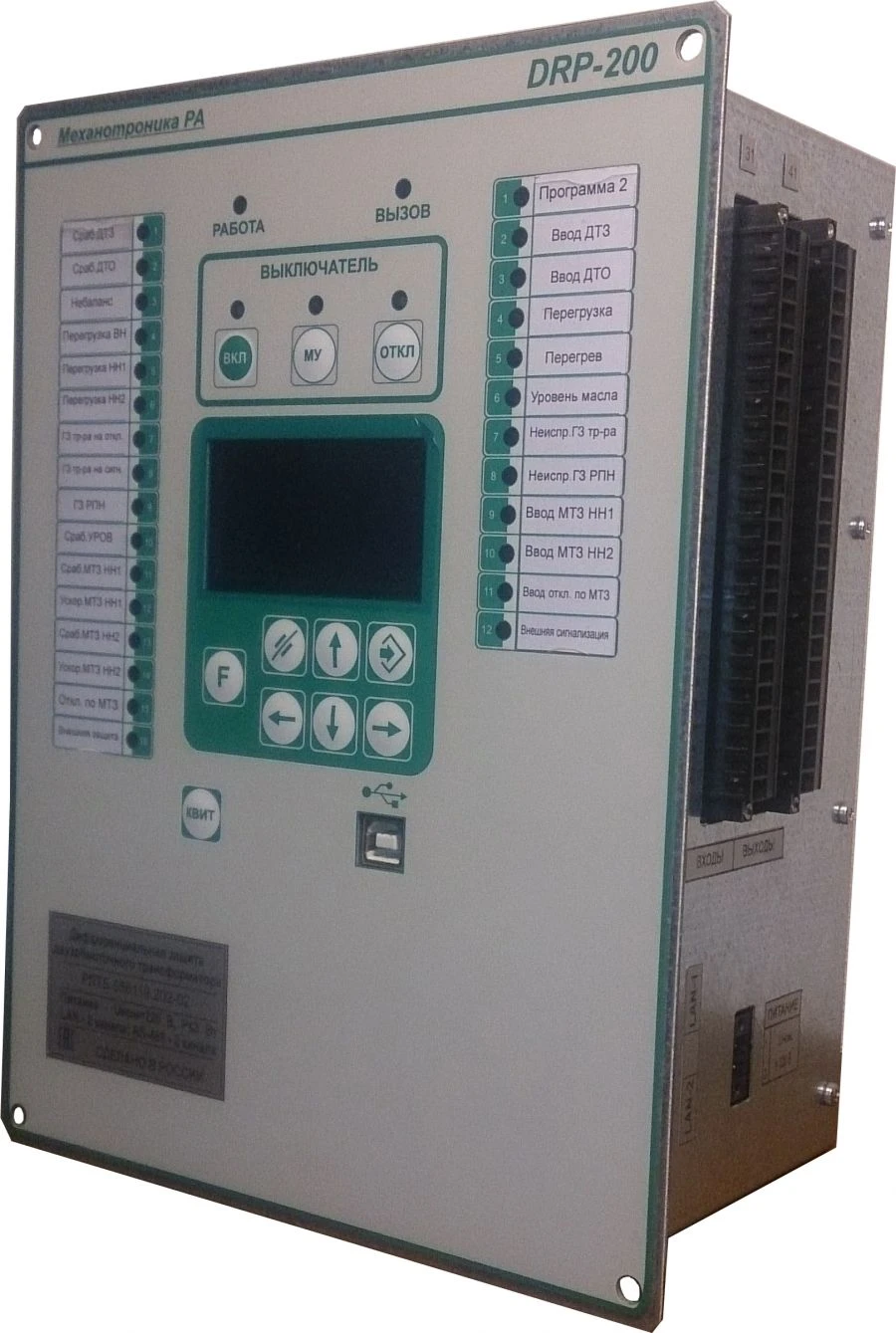

DRP-200 digital devices (DRP-200-DZT3, DRP-200-RZT, DRP-200-DZSH12, DRP-200-KSZ, DRP-200-USO, DRP-200-ZO, DRP-200-AUV, DRP-2).

Low-Voltage Electrical Panels

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

DRP-200 digital devices (DRP-200-DZT3, DRP-200-RZT, DRP-200-DZSH12)

Description

DRP-200 digital devices are designed to perform the functions of relay protection, control, automation, signalling and parameter monitoring of feeders with voltage up to 220 kV, as well as for accurate measurement of electrical parameters, technical metering of electricity, registration of discrete signals and retransmission of control commands from ACS and telemechanics.

Specifications

Weight 4 kg

Functional purpose -DZT3- Differential protection of three-winding transformers and autotransformers; -RZT- Reserve protection of transformer; -DZSH12- Differential protection of busbars with the number of connections up to 12; -DZO- Differential protection of busbars; -KSZ-

Voltage range of AC or rectified current operating supply voltage 66...264 V

DC operating supply voltage range 88...370 V

Operating temperature range -40..+70 °C

Maximum power consumption 15 W

Number of digital inputs 24 pc

Number of output relays 21 pc

Number of analog inputs B1/B8 2100/900 MHz pc

Warranty period 5 a

Average MTBF 125000

Average service life 25 a

Overall dimensions 195×260×140 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
