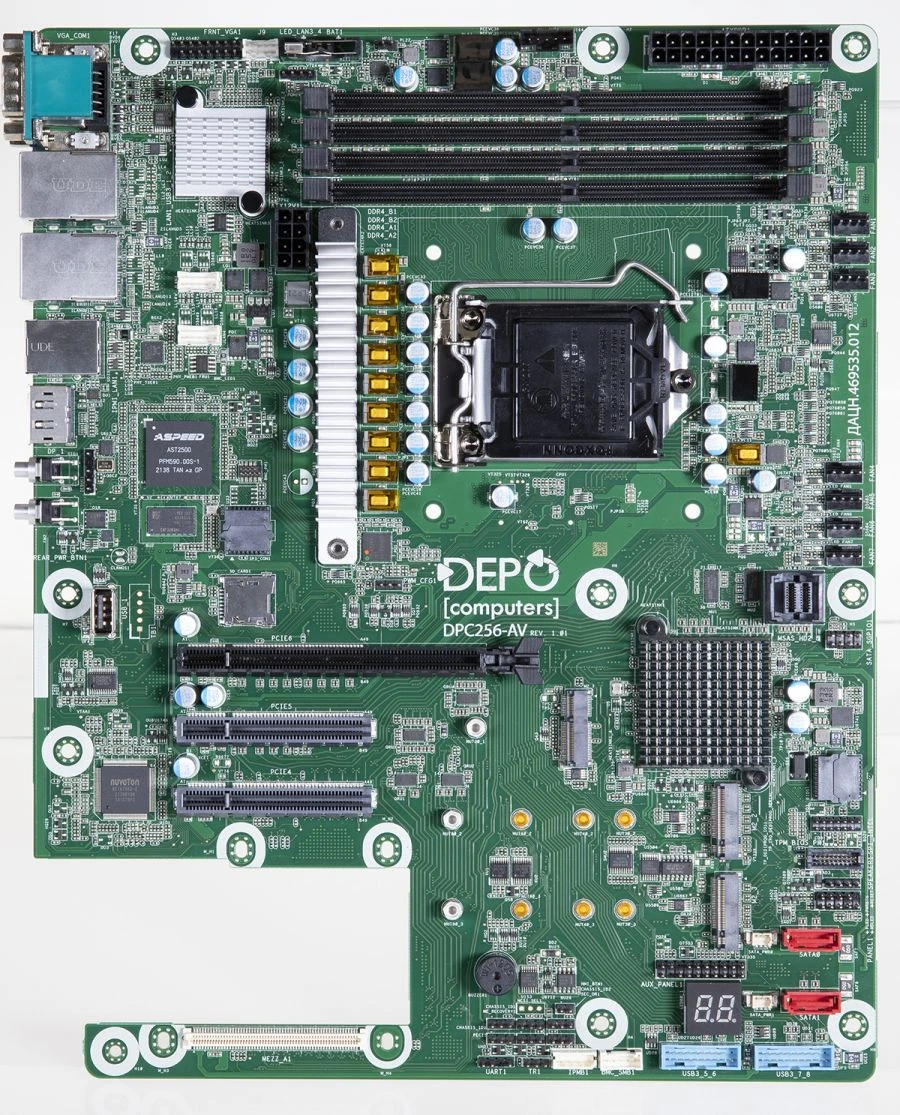

DPC256-AV System Board for Servers and Storage Devices

Advanced Computing Devices

Manufacturer: DEPO Electronics LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

System board DPC256-AV is designed for use in servers, data storage systems and other electronic devices manufactured by DEPO Electronics Ltd. The board is based on Intel® C256 chipset system logic, equipped with Intel® i350 Gigabit Ethernet controller, two M.2 M-Key SATA/PCIe x4 Gen 4.0 slots and one M.2 M.2 E-Key with WiFi/Bluetooth module support, six SATA connectors with RAID 0/1/5/10 support, a dual port SATA DOM controller and MiniSAS HD connector, DisplayPort 1.4, S-Dub (VGA) video outputs, COM port, four USB 3.2 Gen1 ports on the rear panel, and connectors for additional USB ports. It has expansion slots one PCIe x16 Gen.4, two PCIe x8 Gen.4, and one OCP2.0 (Mezzanine).

Specifications

Power supply voltage

5...12 V

Operating temperature range

10...35 °C

MicroSD card slot

1 pcs

Number of RJ45 GLAN

4 pcs

Mezzanine OCP2.0 slot

1 pcs

PCIe 4.0 x8 expansion slot

2 pcs

PCIe 4.0 x16 expansion slot

1 pcs

Type of memory

Dual-channel memory supporting DDR4 3200 ECC/non-ECC UDIMM 1.2V

Processors

Intel® Xeon® E-2300 and 10th generation Intel® Pentium®

Video outputs

DisplayPort 1.4, D-Sub (VGA)

Dimensions

305 x 244 mm

Form factor

ATX

Chipset

C256

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
