Detection device UDBN-13P

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed to measure the absorbed dose rate of neutrons and to act as a primary measuring converter of signals coming from the detection unit, converting the measurement results into a value in floating-point format

Specifications

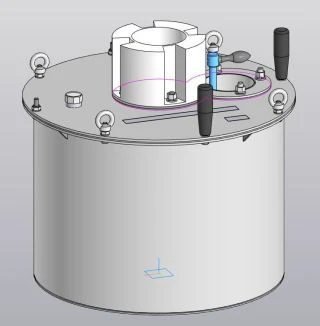

Structure Detection unit BDBN-13R; Controller unit BUP-39P8.

Number of interfaces RS-485/422/232 2 pc

Number of channels 1 pc

Atmosphere type II

Degree of protection (IP) IP55

EMC group III

Seismic resistance category ||

Safety class according to NP-001 4?

Weight 12.8 kg

Overall dimensions (H x W x D), mm 483x250x256 (BDBN-13R); 275x180x85 (BUP-39P8).

Operating temperature range -30...50 °C

Basic relative error of measurement 25 %

Measurement range of absorbed dose rate / Gy/h 1,0?10?-5 - 1,0?10?0

Power consumption 2.7

Number of measuring channels 1 pc

Interface type RS-485

Power supply voltage 27 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
