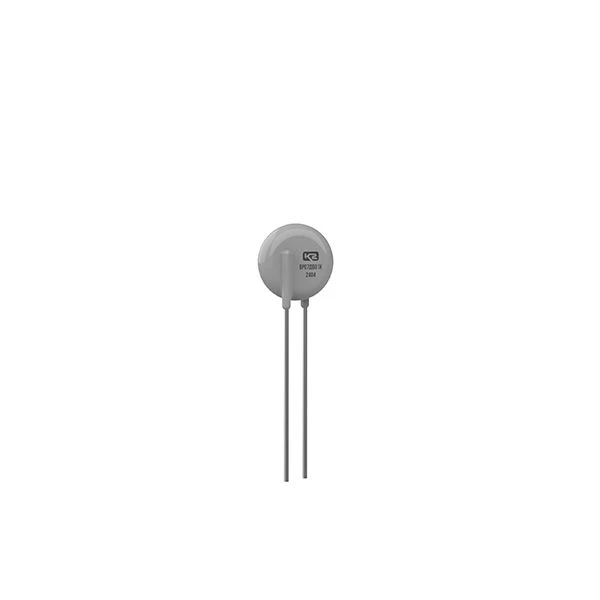

Disc Varistor 420V, 1.2kA (8/20) - VR07D681K for Electrical Equipment Safety

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR07D681K - varistor of KVS series, 420 V, 1.2 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, uninsulated.

Maximum disk thickness

6.5 mm

Maximum disk diameter

9 mm

Operating temperature range

-60...85 °C

Maximum pulse energy (2 ms)

28.6

Permissible amplitude of a single current pulse (8/20 µs)

1200 A

Maximum continuous operating voltage

560 V

Maximum AC operating voltage

420 V

Classification rated voltage at 1 mA current

680 V
