Available for Import

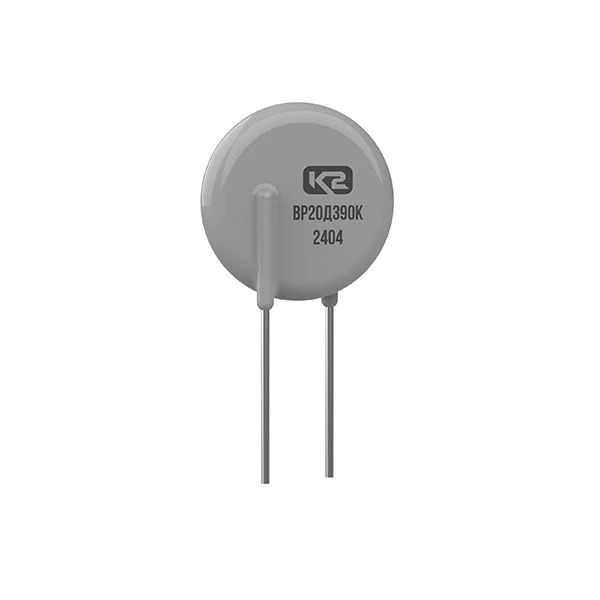

Disc Varistor 25V for Surge Protection - VR20D390K

Manufacturer: HAKEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR20D390K - varistor of KVS series, 25 V, 2.0 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Classification rated voltage at 1 mA current

39 V

Maximum AC operating voltage

25 V

Maximum continuous operating voltage

31 V

Permissible amplitude of a single current pulse (8/20 µs)

2000 A

Maximum pulse energy (2 ms)

11.7

Operating temperature range

-60...85 °C

Maximum disk diameter

23 mm

Maximum disk thickness

8 mm
