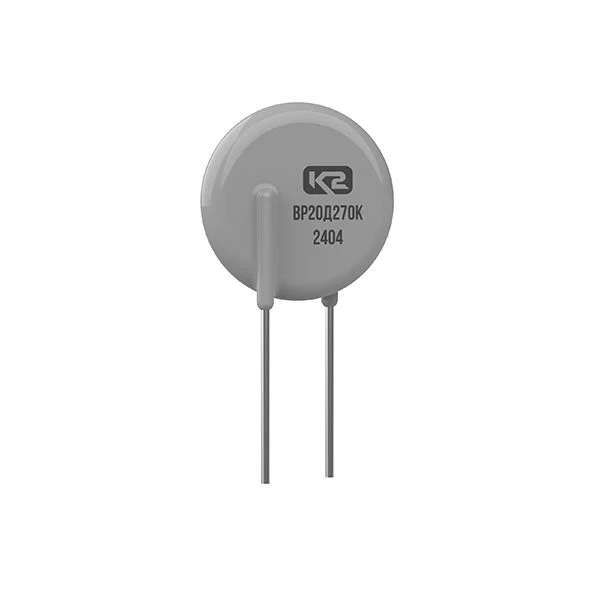

Disc Varistor 17V 2.0kA (8/20) - VR20D270K for Electrical Surge Protection

Manufacturer:HAKEL OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

VR20D270K - varistor of KVS series, 17 V, 2.0 kA (8/20), zinc-oxide, disc-shaped with unidirectional (radial) wire leads, protected, not insulated.

Classification rated voltage at 1 mA current

27 V

Maximum AC operating voltage

17 V

Maximum continuous operating voltage

22 V

Permissible amplitude of a single current pulse (8/20 µs)

2000 A

Maximum pulse energy (2 ms)

8.1

Operating temperature range

-60...85 °C

Maximum disk diameter

23 mm

Maximum disk thickness

8 mm
