Digital Magnetic Discharge Vacuum Gauge VMC-PMMAvailable for Import

Digital Magnetic Discharge Vacuum Gauge VMC-PMM for Precise Pressure Measurement

Pressure Measuring Instruments
Manufacturer:LVT+ LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Vacuummeter magnetic-discharge digital VMC-PMM is designed to convert absolute pressure into an electrical digital signal. Working range of pressures from 1-10-? to 1,3 Pa. Pressure measuring range from 1-10-? to 0,13 Pa VMC-PMM is designed to work only with the converter with cold cathode PMM-32-1 Vacuum gauge VMC-PMM is used in automated vacuum systems for industrial, experimental and educational purposes.

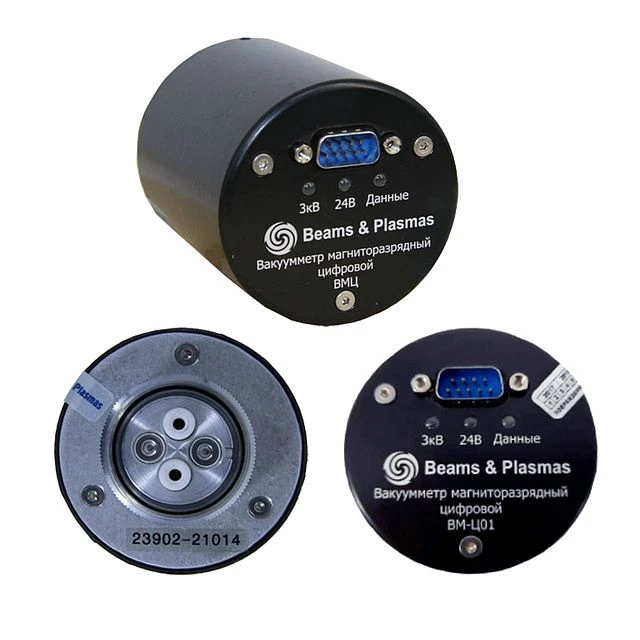

Magnetic discharge digital vacuum gauge VMC-PMM

Operation manual available on request: LCMK.239.00.00.00.00.000-02 VMC-01 (type 02 PMM - 32)

Specifications

Operating pressure range
1-10-? to 1.3
Pressure measuring range
1-10-? to 0.13
Power consumption, max.
8,0 W
Rated supply voltage
24 ±3 % V
Power supply voltage
16..32 V
Interface
RS-485
Data transfer protocol
ModBus RTU
Type of pressure sensor
Double inverse magnetron PMM-32-1
Connection type
DB-9M plug for power and data connection and connector for connection to inverter
Overall dimensions (diameter × length), not more than
70 × 115 mm
Weight, not more
0,45 kg
Execution
02 type Pmm - 32
Dustproof
Yes / No - The casing of the device, with the electronics unit placed inside it, is made of aluminium alloy and complies with the standard IP 21 according to GOST 14254-2015, IP 21 according to GOST 14254-2015, III class of protection against electric shoc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
