Available for Import

Detection device UDPG-08P1 (dual-purpose product)

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

UDPG-08P detection device (dual-use products)

Description

Designed for continuous measurement of volumetric activity of gamma-emitting radionuclides, including radionuclide 16N, when placed outside pipelines with process liquids or vapour-water mixture using a collimator

Specifications

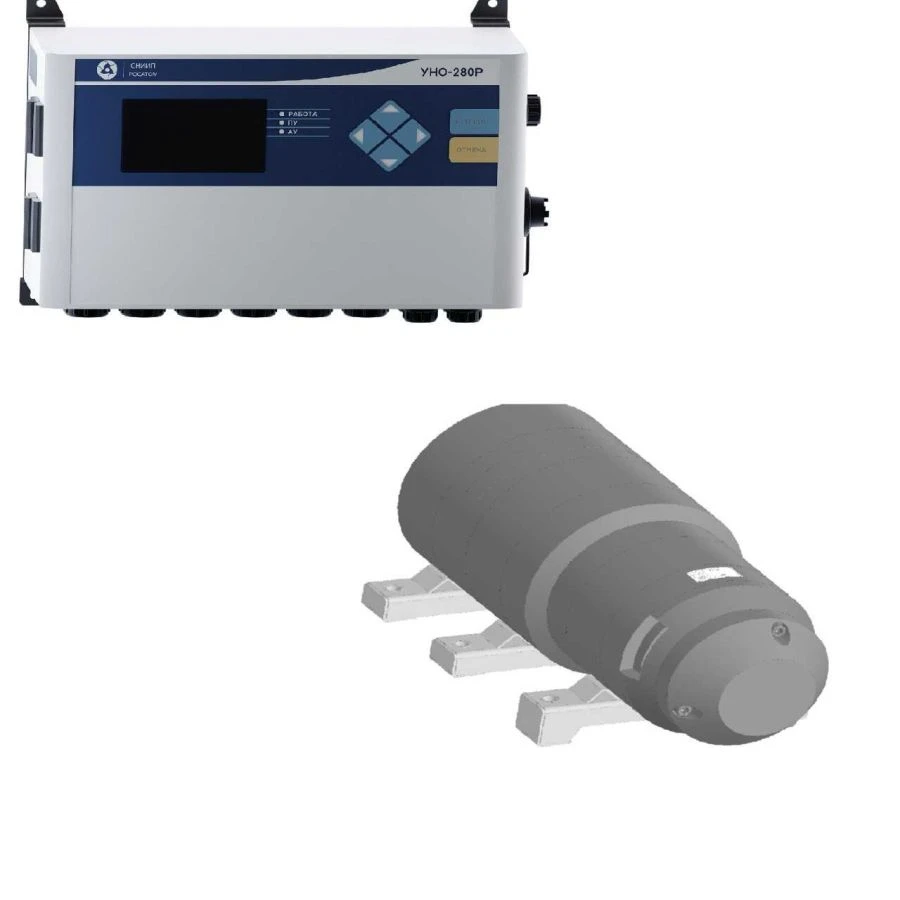

Structure Detection unit BDEG-28R; Information processing device UNO-280R

Number of interfaces RS-485/422/232 1 pc

Number of channels 2 pc

Atmosphere type I

Degree of protection (IP) BD (without protection) - IP57; protection against external background - IP3X; UNO - IP55.

EMC group | | |

Seismic resistance category I

Safety class according to NP-001 3?

Weight 13.3 kg

Overall dimensions (H x W x D), mm 90x460 (Detection unit PDEG-08R); 368x245x140(UNO-280R).

Operating temperature range -5...80 °C

Basic relative error of measurement 15 %

Measurement range of volumetric activity, Bq/m3 1,5õ10?+2 - 2,0õ10?+8

Power consumption SBVVBG

Number of measuring channels 1 pc

Interface type RS-485

Power supply voltage 220 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
