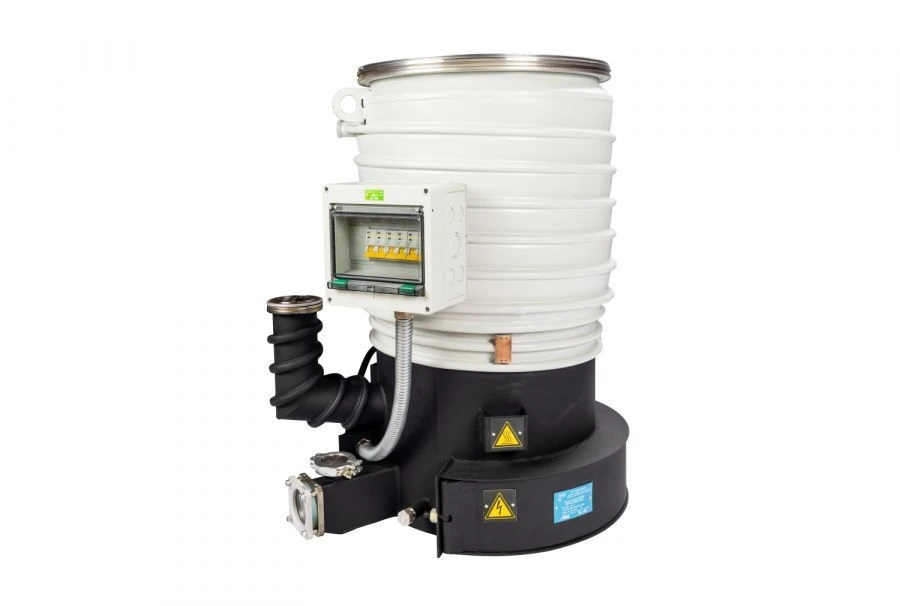

Diffusion high-vacuum pump ND-400P

Specialised Vacuum Pumps

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Diffusion high-vacuum pump ND-400

Diffusion high-vacuum pump ND-400P is designed for pumping out of hermetic volumes of air, gases, vapours and vapour-gas mixtures not aggressive to materials of construction and working fluid of the pump and not containing dripping moisture and mechanical contaminants. The ND-400P diffusion high-vacuum pump is used in conjunction with a forevacuum pump, the speed of action of the forevacuum pump is not less than 101m3/h. Type of climatic execution UHL4, the pump is not designed for operation in fire-explosive production facilities. Flange type according to USSR industry standard

Technical Specifications

Overall dimensions (in/out/n), mm, not more	800/677/530 mm
Macca, kg, not more	80 kg
Cooling water flow rate, l/h, per oil deflector	40 l/h
Cooling water flow rate, l/h, per housing	250 l/h
Working fluid grade (oil)	VAKMA OIL 500
Working fluid quantity, l, min	4.5 l
Working fluid quantity, l, max	5.6 l
Power consumption, kW	4.8 kW
Supply voltage, V	220/380 V
Ultimate residual pressure at ambient air temperature from +10 0C to +35 0C, Pa, not more than	3?10 -4
Highest discharge pressure, Pa, not less than	26.6
Fast action of forevacuum pumps at a pressure of 26 Pa (0.2 mm Hg) in the outlet section should be, m3/h, not less than	101
Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than	7200 l/s
Rapidity of action on air at pressure 1x10 -1 Pa, l/s, not less than	4000 l/s
Rapidity of action on air at pressure of 1 Pa, l/s, not less than	600 l/s

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
