Available for Import

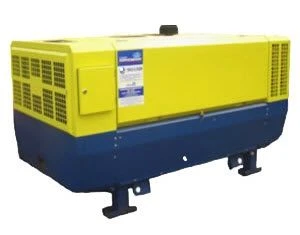

Diesel-Powered Compressor Station PKSD-1.4/25 U1 for Construction Applications

Piston Compressor Units

Manufacturer: ORELCOMPRESSORMASH LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Diesel-driven compressor station PKSD-1,5/16 U1 series (reciprocating) Diesel driven compressor station PKSD-5,25P U1 series (piston) on wheel chassis Diesel-driven compressor station PKSD-3,5 U1 series (reciprocating)

Description

The compressor station type PKSD-1,4/25 U1 is designed to produce compressed air and supply it to pneumatic tools and mechanisms during road, construction and other works. The station can be manufactured in the version for mounting on the frame of tractor trailer of PT type under its body or in stationary version with independent frame and body. According to the method of protection of a person from electric shock the stations belong to class 1 according to GOST 12.2.007.0.

The stations are manufactured in climatic version "U" and placement category 1 according to GOST 15150, but for operation at ambient air temperature from minus 35 to plus 40 °C and atmospheric pressure not lower than 0.087 MPa (650 mm Hg).

Specifications

Voltage

B1/B8 2100/900 MHz V

Weight

1380 kg

Compressible gas

air

Capacity reduced to initial conditions

1.4 m3/min

End pressure, nominal absolute pressure

2,6 (26) MPa (kgf/cm2)

Power consumed by the compressor, not more than

20 kW

Drive type

Diesel engine

Engine power, operating

48 kW (at n=2000 rpm)

Fuel

diesel

Fuel tank capacity

60 ?

Fuel consumption at nominal mode, not more than

6.3 kg/h

Engine cooling system

Water, closed, with forced circulation

Engine starting system

electric starter

Performance control

Automatic, by idling the compressor

Overall dimensions

3500x1755x2235 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
