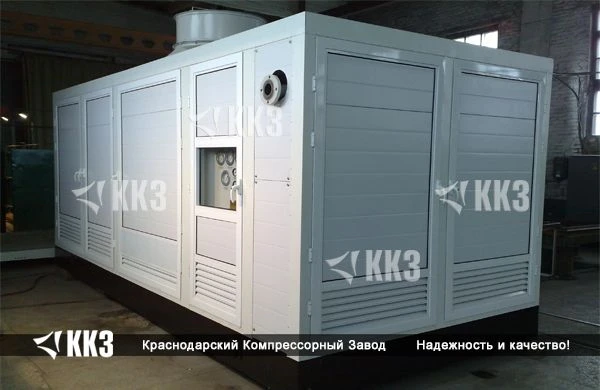

Gas Filling Compressor Station AGNKS-100 for Vehicles and Equipment

Gas fuelling stations AGNKS-100 - for fuelling of cars, special vehicles and PAGZ with gas motor fuel, are used in private and public fleets, all industrial sectors and spheres. CNG filling stations are designed for fuelling vehicles with natural gas compressed up to 200 atm, mobile CNG filling stations - with gas compressed up to 250 atm. Stationary CNG fuelling stations are connected to existing gas mains.

Compressed gasNatural gas according to GOST 5542-87 Compressor typePiston, four-row, oppositional on the basis of 4GM2,5. Overpressure at the station inlet, within the limits, MPa (kgf/cm²)0,05-1,2 (0,5-12) Station capacity, conditional fuelling per day100 Final pressure of gas filled into the vehicle, MPa (kgf/cm²)19,6 (200) The products have the Conclusion on confirmation of industrial production in the territory of the Russian Federation according to the Resolution of the Government of the Russian Federation No. 719 dated 17.07.2015.

Included in the Register of Russian industrial products.
