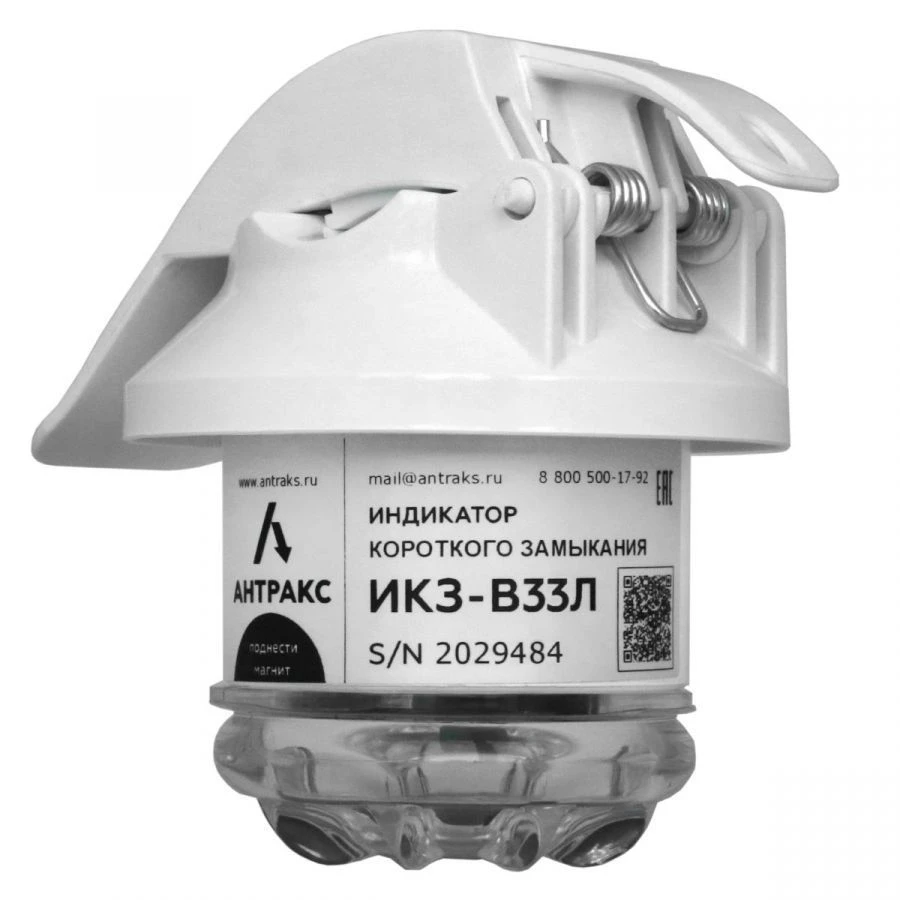

Short-circuit indicator, type IKZ-B (model IKZ-V33L-UZ)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Indicators of short-circuit are designed for localisation of the damaged section on overhead lines of distribution power grids with voltage 6-35 kV, frequency 50/ 60 Hz, with any type of neutral (blind-earthed, resistive, compensated isolated) with one-sided feeding, ring lines with two-sided feeding. Indicator set controls and continuously monitors current and voltage in each phase wire of overhead power lines, provides joint data processing, data transfer to the data acquisition server (when connected to the BSPI) All indicators of the set IKZ-V33L-U3 are equipped with radio channel of BLE standard, registers short circuits from 20 A, short-circuits from 2 A. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C. IP 68.

Specifications

Temperature range extended -60 to +85 °C

Temperature range standard -40 to +70 °C

Local communication: Bluetooth short-range radio link 2.4

Battery life in standby mode 7 a

Time to analyze the alarm process 0.5...200

Power supply: Lithium battery (19 Ah) 1 pc

Blanking of inrush currents 0...200

Differential current threshold in A 20...500 A

Differential current trip threshold in % 50...500 %

Absolute current trip threshold 20...1000 A

Visibility of the visual indication during daylight hours 100 m

Visibility of visual indication at night time 500 m

Wire diameter 5...40 mm

Sensitivity to short-circuit current 2 A

Short-circuit current sensitivity 20 A

Network frequency 60

Voltage class of overhead lines 6...35 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
