Available for Import
Server I22W2S0D02
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

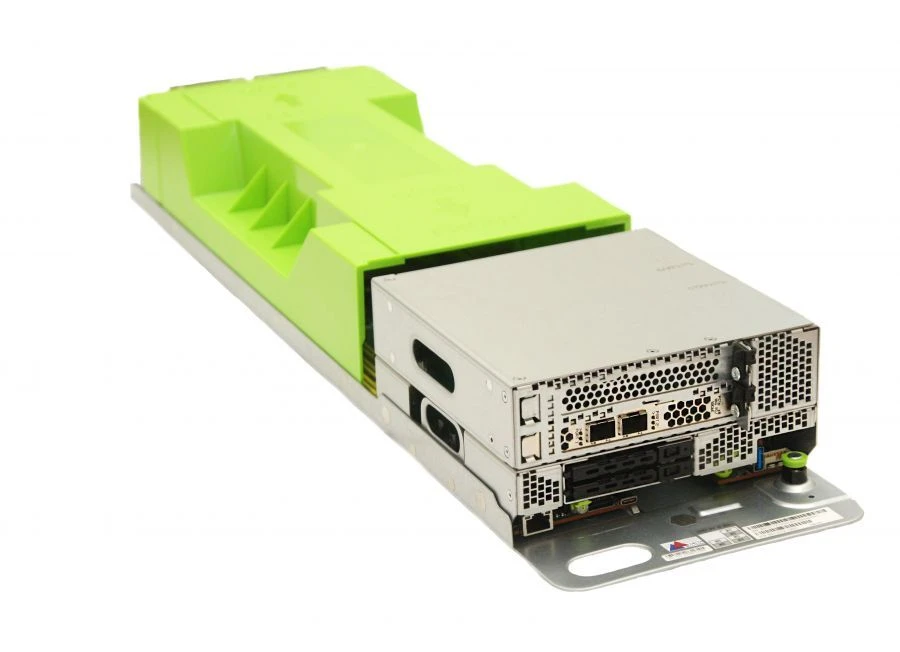

The Delta Tioga Pass server is designed in accordance with open standards and architecture Open Compute Project (OCP), is the basis of energy-efficient and cost-effective data centres, carries a wide range of workloads, allowing users to build compute clusters, create distributed storage and hyperconverged infrastructure.
Delta Tioga Pass server is easy to maintain, has high energy efficiency in an ultra-compact size. The Delta Tioga Pass server is remotely managed and monitored via the built-in "Delta BMC" software. Users can hot-swap both the server itself and the high-speed SSDs included in the many configurations of the Delta Tioga Pass server. Combining the advantages of OCP architecture and server performance allows not only to reduce the cost of ownership, but also to provide customers with better and more affordable services, getting se...
Delta Tioga Pass server is easy to maintain, has high energy efficiency in an ultra-compact size. The Delta Tioga Pass server is remotely managed and monitored via the built-in "Delta BMC" software. Users can hot-swap both the server itself and the high-speed SSDs included in the many configurations of the Delta Tioga Pass server. Combining the advantages of OCP architecture and server performance allows not only to reduce the cost of ownership, but also to provide customers with better and more affordable services, getting se...
Technical Specifications
| Type of product according to PP RF 616 | Computational electronic digital machines, supplied as systems for automatic data processing |
|---|---|
| Processor connector | Two socket p LGA 3647 (socket p) |
| Processor family | intel® xeon® scalable processor / 2nd intel® xeon® scalable processor |
| Interface connection of processors | intel® ultra path interconnect (upi) with operating speeds up to 10.4gt/s. |
| Processor chipset | intel® c621 |
| Number of RAM slots | B1/B8 2100/900 MHz pc |
| Type of RAM | ddr4 |
| RAM bus frequency | 2400/2666/2933 MHz |
| Type of RAM | rdimm/lrdimm |
| Maximum RAM capacity | Up to 3072 GB (using 12 256 GB RAM modules) |
| Storage subsystem (on the motherboard) | Slot for 1 M.2 PCIe x4 or SATA 2280/22110 size M.2 SSD |
| Storage subsystem (on motherboard) - optional | Slots for 2 M.2 NVMe x4 SSDs |
| Storage subsystem (in the disk add-on) | slots for 2 2;5" 7mm sata hot-swappable 2.5" SSDs |
| Expansion card connectors | PCIe x 16 FHHL - 2 pcs. |
| Expansion card connectors (OCP) | mezzanine ocp 2.0 card (a+b) |
| Platform management interface | ipmi via rj45 port (front panel) |
| Video interface | Mini VGA (front panel) |
| USB connectors | usb 2.0/3.0 - 1 pc. usb type c - 1 pc. (on the front panel) |
| Testing interface | 14-pin server debug card connector (front panel) |
| Number of cooling fans | 2 pc |
| Dimensions (W x L x H) | 2ou; 174 mm x 880 mm x 89 mm |
| Weight (net weight) | 6.9...7.3 kg |
| Power supply | DC 12;2V ± 0;4V from the server rack current bus |
| Rear panel I/O interfaces | PCIe x8 via AirMax - 2 pcs (optional) |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
