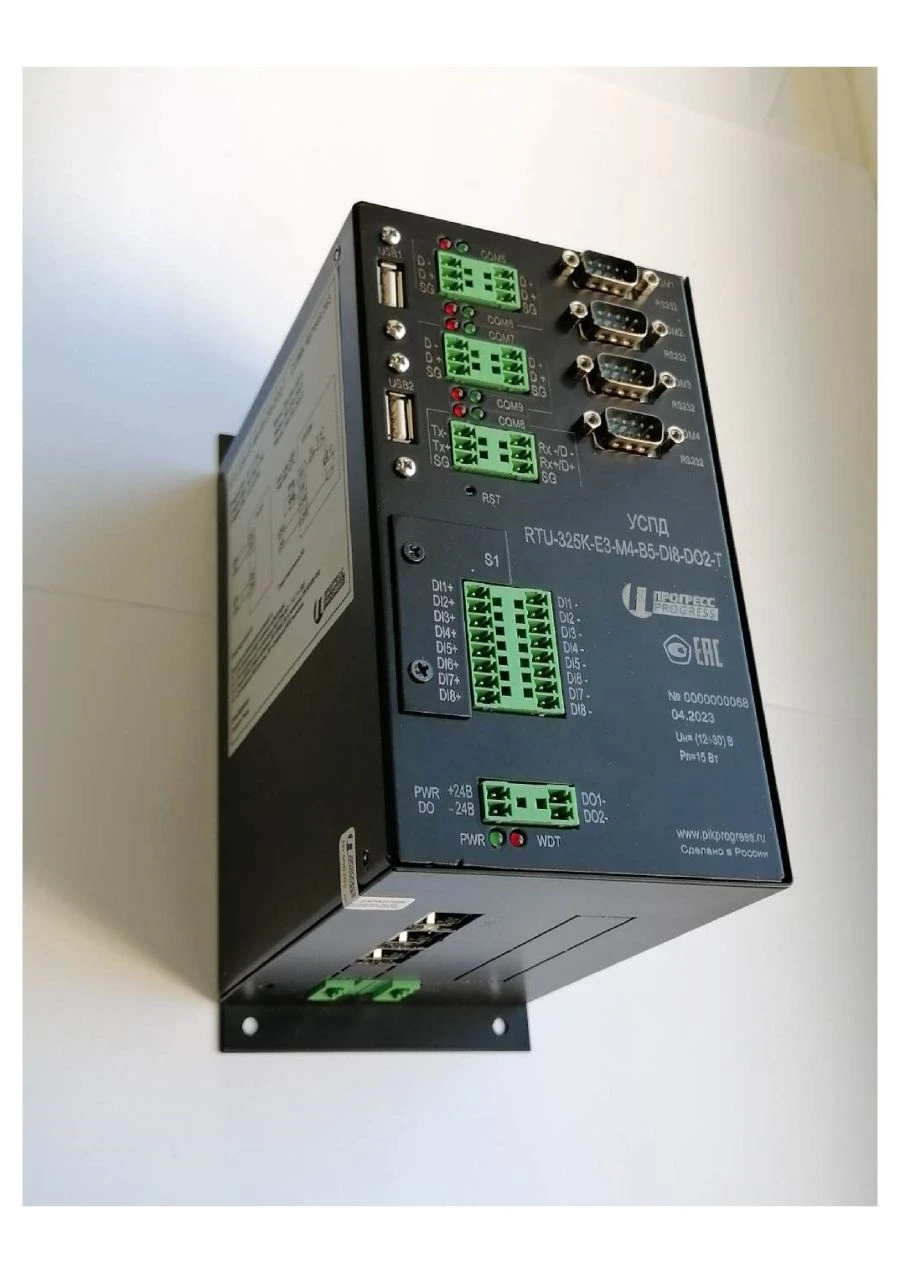

Available for ImportData Collection and Transmission Device RTU-325K-E3-M4-B5-DI8-DO2-T for Energy Monitoring Systems
Manufacturer:PIK PROGRESS OJSC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
USPD is intended for construction on its basis of distributed, project-component, hierarchical, multifunctional automated systems of control and metering of electric power (ASCME), automated information-measuring systems of metering of electric power (AIMSME) for wholesale and retail markets of electric power and capacity (WEM), construction of telemechanics systems, systems of energy resources accounting, control of technological parameters.
Specifications
Ethernet 10/100base TX network interfaces
3 pcs
Built-in RS-232 serial interfaces
4 pcs
Built-in RS-485/422 serial interfaces
5 pcs
Built-in USB interfaces
2 pcs
Discrete inputs Ucp ?10V, Iinh=13mA at Uinh=24V
8 pcs
Discrete outputs Umax = 28 V, Imax 300 mA
2 pcs
Operating range of ambient air temperature
-40...70 °C
DC supply voltage
12...30 V
Power consumption in the power supply circuit , not more than
15 W
Overall dimensions (WxHxH), mm, not more
100 x 142x 178
Overall dimensions (WxHxH) with mounting base, mm, not more
100 x 142x 208
Weight, not more
1.5 kg
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
